Lubricate Stabilizer Pivots and Cylinder Pins

Apply grease to lubrication fittings until it escapes from joint. (See Fuels and Lubricants chapter for recommended type of grease.)

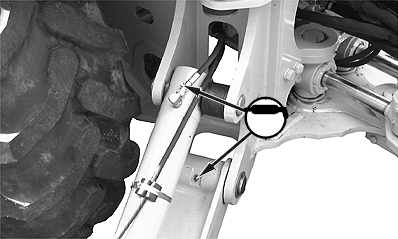

T132374B

4 points-Left Side Shown

OUO1079,000025C -19-11SEP00-1/1
