Lubricate Backhoe Linkage, Pivots, and Cylinder Rod Ends

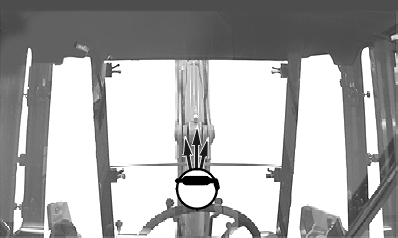

T131781C

3 Points-Optional Cab Shown
T132381B

3 points

T132375B

11 points-Right Side Shown
T132376B

8 Points-Right Side Shown
All Backhoes

Apply grease to lubrication fittings until it escapes from joint. (See Fuels and Lubricants chapter for recommended type of grease.)

OUO1079,000025D -19-11SEP00-1/2

T132377B

1 Point
T132376C

3 Points
Extendible Dipperstick Backhoes-If Equipped

Lubricate extendible dipperstick with a low pressure grease gun. (See Fuels and Lubricants chapter for proper type of grease.)

OUO1079,000025D -19-11SEP00-2/2
