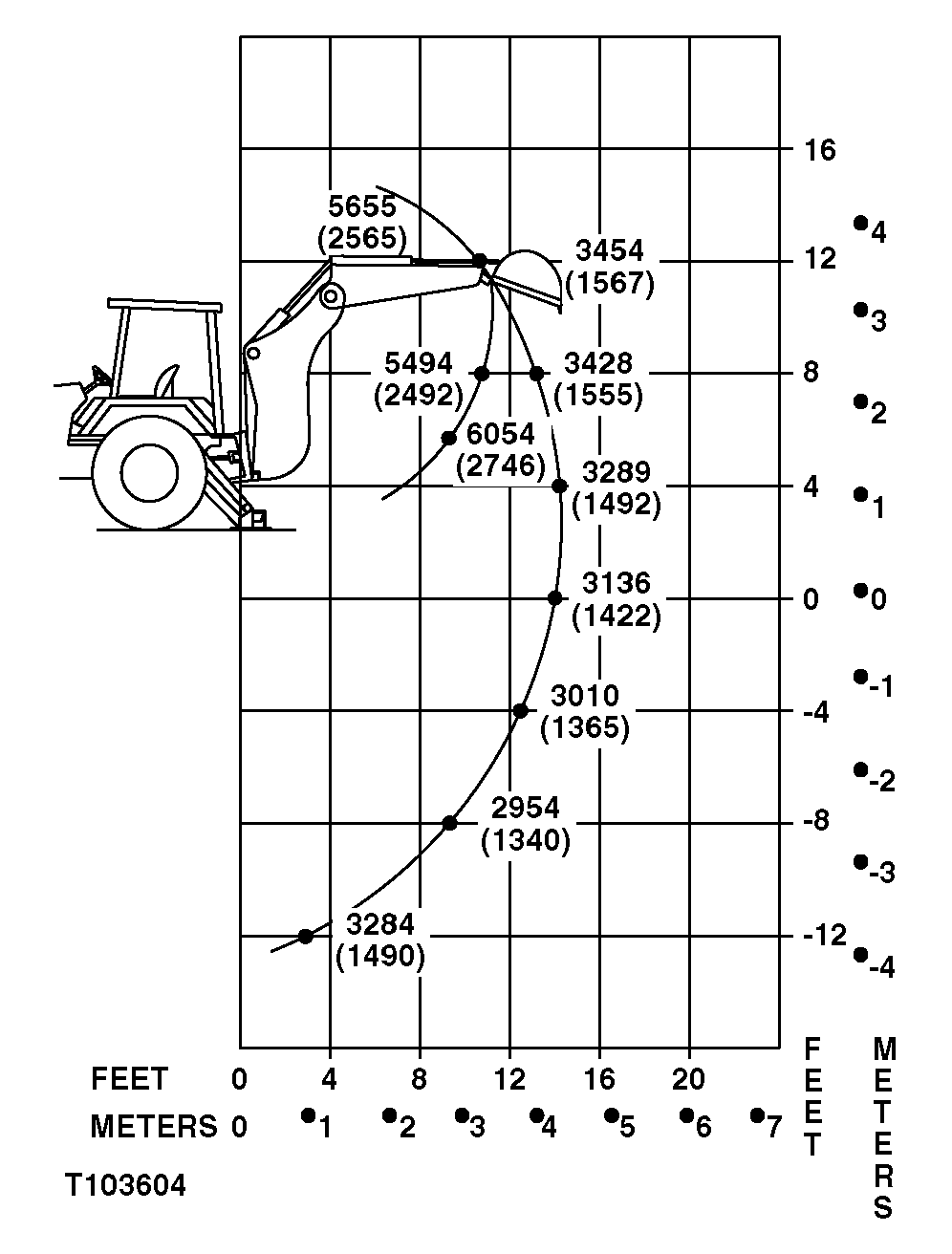

410G Backhoe Loader Lifting Capacities-Standard Dipperstick

Lifting capacity ratings are made with bucket hinge pin, loader bucket and stabilizers on firm, level ground. Lift capacities are hydraulically limited. Lifting capacities are 87 percent of the maximum lift over any point on the swing arc and do not exceed 75 percent of the tipping load. Angle between boom and ground is 65 degrees. Machine is equipped with 610 mm (24 in.) standard bucket, standard or extendible dipperstick, and standard equipment.

NOTE: Loader bucket on ground significantly improves side stability, therefore improving lift capacity to the side. Lift capacity over the rear is not affected.

OUO1079,0000273 -19-12SEP00-1/1
