Universal Bucket Couplers and Bucket Options

NOTE: In addition to the Universal coupler shown here, other couplers are available through your authorized dealer for a specific machine manufacturer; such as CASE and FORD NEW HOLLAND.

The 310SG, 315SG, and 410G backhoe buckets have the same pin sizes, allowing backhoe buckets for these models to be used interchangeably. This provides 190° bucket rotation without changing bucket pin location. Bucket must be installed in truck load position to prevent rod from hitting grease fitting on top of dipperstick.

310G backhoe buckets are configured differently, and may NOT be used interchangeably with other G/SG backhoes.

T111029
Item Measurement Specification

310SG, 315SG, and 410G Bucket-to-Dipperstick Pin

Diameter 54.6 mm (2.15 in.)

310SG, 315SG, and 410G Bucket-to-Bucket Linkage Pin

Diameter 49.8 mm (1.96 in.)

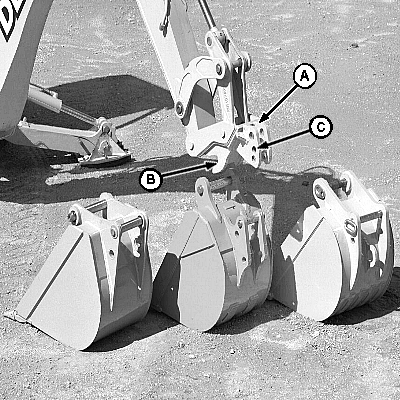

A universal coupler is available to adapt 310SG, 315SG, or 410G backhoe for use with existing Deere types of buckets. To use coupler (A), slide front bucket pin into pin groove (B) of coupler and attach back bucket pin through appropriate size hole (C) in coupler, with coupler installed, the following buckets may be used:

  • 310SG, 315SG, and 410G Buckets
  • 310SE, 315SE, and 410E Buckets
  • 300D-510D Buckets
  • 210C-610C Buckets
  • Case C, D, K and L Series Buckets
  • Caterpillar B-Series Buckets

OUO1079,0000293 -19-09OCT00-1/2

NOTE: There bucket coupler has different rear pin positions for the John Deere G/SG- and E/SE-series buckets; C-series, D-series, and CASE buckets; and CATERPILLAR buckets.

310G and 310E buckets do not fit on this coupler.

To attach the coupler to a bucket, engage the hook on the coupler with the front bucket pin. After the front pin is in the hook, roll the bucket to the correct rear pin position. The coupler has three rear pin holes to attach different buckets.


A-CATERPILLAR
B-John Deere C-Series, John Deere D-Series, and CASE
C-John Deere 310SG, 315SG, 410G, 310SE, 315SE, and 410E

T115740
