Use controls (A-B, E-G, I) to drive the machine. (See Driving the Machine chapter for description and operational information.)

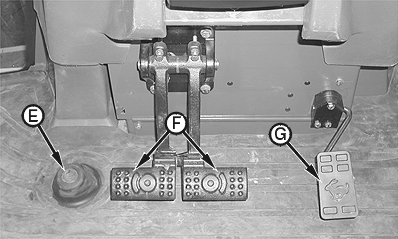

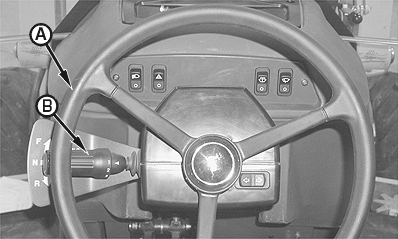

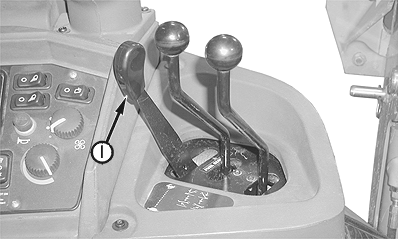

A-Steering Wheel B-FNR/Range Lever E-Differential Lock Switch F-Brake Pedal (2 used) G-Speed Control Pedal H-Clutch Disconnect Switch I-Engine Speed Control Lever
OUO1079,00002AD -19-23OCT00-1/1
