Change Transmission Oil Filter

1. Turn transmission oil filter (A) counterclockwise and remove.

2. Apply film of oil to sealing ring on new transmission oil filter. Install new transmission oil filter. Turn clockwise until sealing ring touches mounting surface, then tighten an additional 3/4 to one turn with a suitable filter wrench.

3. Start engine and run for three minutes to allow filter element to refill and purge air from charge circuit.

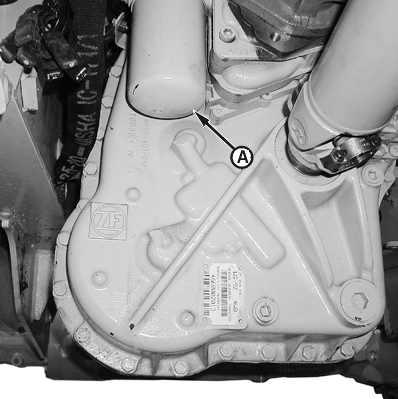

A-Transmission Oil Filter

T132445B

OUO1079,00002AE -19-23OCT00-1/2

4. With engine running at slow idle, remove transmission dipstick (B). Check transmission oil level and add oil through dipstick tube as necessary. (See Fuels and Lubricants chapter for proper type of oil.)

5. Check for leakage around filter. Tighten filter just enough to stop leaks.

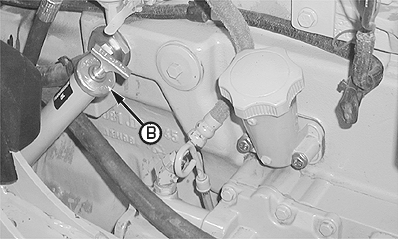

B-Transmission Dipstick

T132362E

OUO1079,00002AE -19-23OCT00-2/2
