Check Transmission Oil Level

causym CAUTION: Prevent possible injury from unexpected machine movement. Never rely on FNR/range lever to keep machine from moving. Always engage park brake to hold machine.

1. Run engine for three minutes to warm transmission oil. Park machine on a level surface. Move FNR/range lever to NEUTRAL. Engage park brake. (See Prepare Machine for Maintenance in Periodic Maintenance chapter.)

2. With engine running at slow idle, turn handle of transmission dipstick (A) counterclockwise and remove.

NOTE: Normal hot oil can be above full mark.

3. Check oil level on dipstick. If oil is not within operating range, add oil through dipstick tube. (See Fuels and Lubricants chapter.)

4. Install transmission dipstick and turn handle clockwise to tighten.

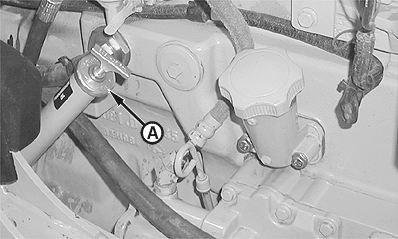

T132362D


A-Transmission Dipstick

OUO1079,00002B1 -19-23OCT00-1/1
