Backhoe Controls-CASE® Three-Lever Style

CAUTION: Several control patterns are available for this backhoe. Always verify control response before operating.

Prevent possible personal injury from unexpected machine movement. DO NOT operate backhoe unless you are in the operator's seat in backhoe operation position with stabilizers DOWN.

IMPORTANT: To avoid machine damage, do not swing boom into stabilizers.

NOTE: When seat is turned to backhoe operation position, seat position sensor will sound an audible alarm and light the STOP indicator if FNR lever is moved to FORWARD or REVERSE position.

NOTE: If equipped with an extendible dipperstick, a fourth lever is added, and is positioned to the right-hand side, next to boom lever.

A conversion kit for changing John Deere two-lever controls to CASE three-lever controls is available from your authorized dealer. Labels corresponding to the CASE controls MUST be installed.

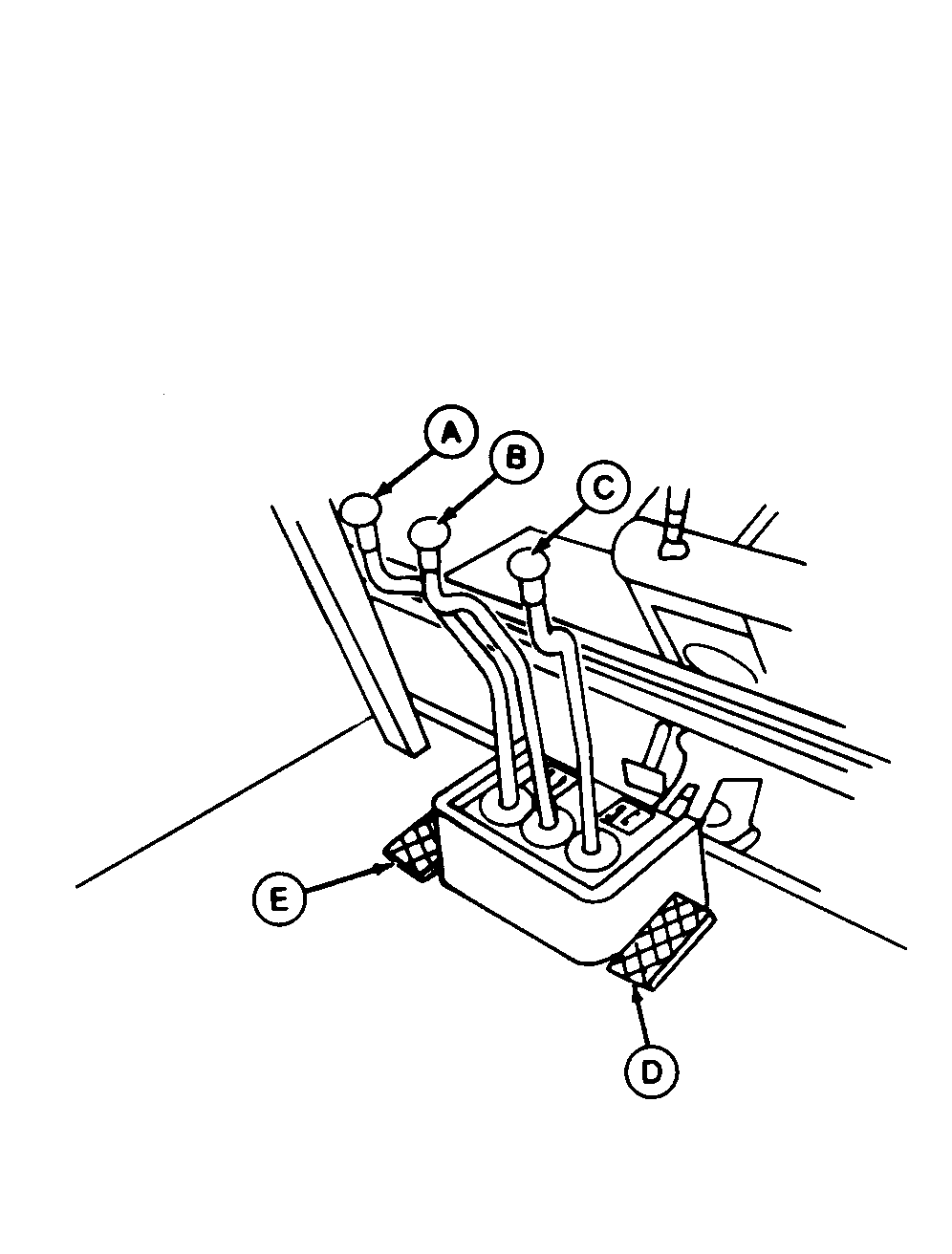

Use bucket lever (A), dipperstick lever (B), boom lever (C), and swing pedals (D and E) to operate backhoe. (See Operating Backhoe-CASE Three-Lever Controls in Operating the Machine chapter for operational information.)

A-Bucket Lever
B-Dipperstick Lever
C-Boom Lever
D-Swing Right Pedal
E-Swing Left Pedal

CASE is a trademark of Case Corp.
