Adding Front Counterweights

causym CAUTION: Counterweights are heavy and can cause serious injury if dropped. Ensure counterweights are properly supported with a forklift or other adequate lifting device before removing.

Install front counterweights for added stability as necessary.

1. Support counterweights with a forklift before adding or removing weights. Insert forklift tines in slots (A).

2. Remove cap screws (B).

3. Remove or add counterweights as necessary.

4. Install cap screws.

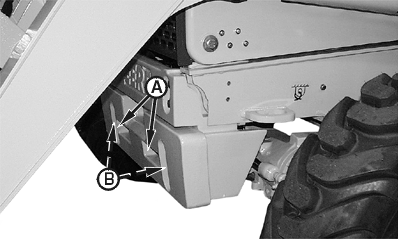

T135176B


A-Slot (2 used)
B-Cap Screw (2 used)

TX,35,BD2105 -19-07JUL00-1/1
