Benching

causym CAUTION: Prevent possible injury from a collapsing soil bank. DO NOT undercut soil bank with bucket.

NOTE: Start benching on a level surface. If necessary, use backhoe bucket to create a level starting point to bench.

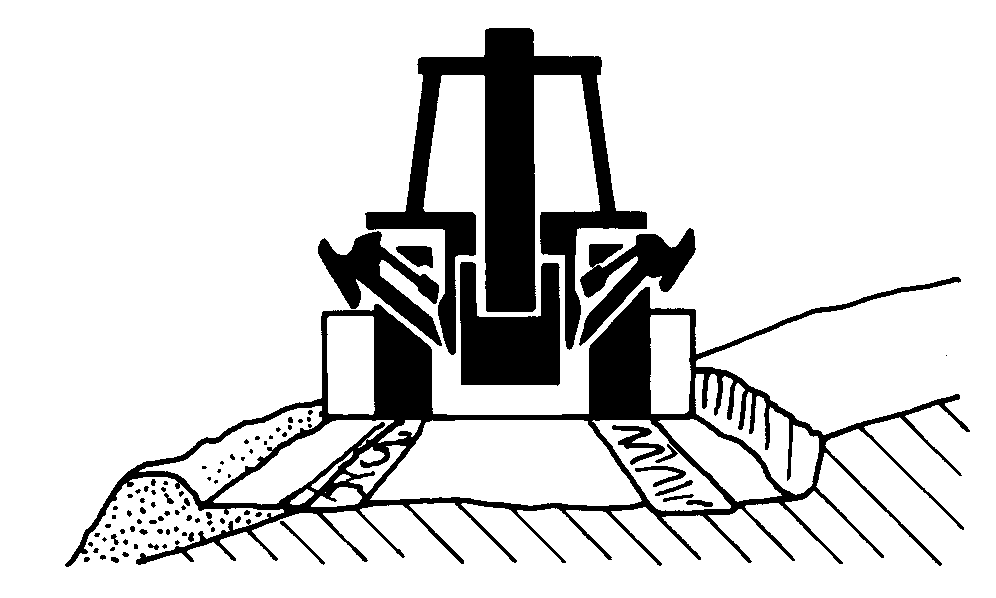

1. With bucket positioned at a slightly downward angle, move gear shift to first gear, lower bucket into ground and drive forward.

2. Create a windrow of spoil material to build the bench.

T7208BA

TX,35,BD2121 -19-07OCT96-1/3

causym CAUTION: Prevent possible injury from rollover. DO NOT drop leading front tire past windrow edge. DO NOT work parallel to road edge to compact spoil.

NOTE: Keep material in bucket while moving forward to fill low spots on bench.

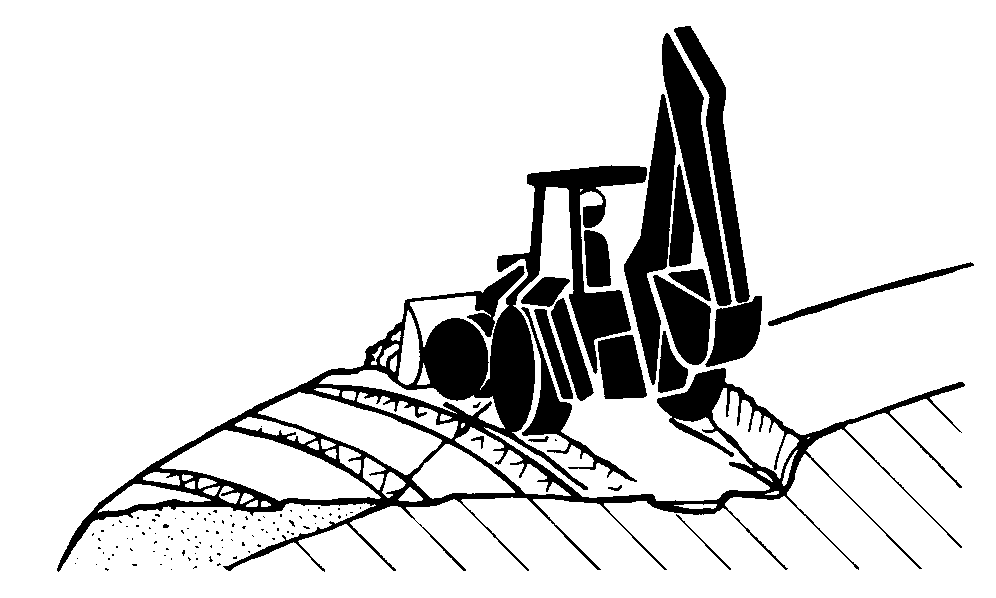

3. Push windrow at 45-90° angle to road edge to extend bench.

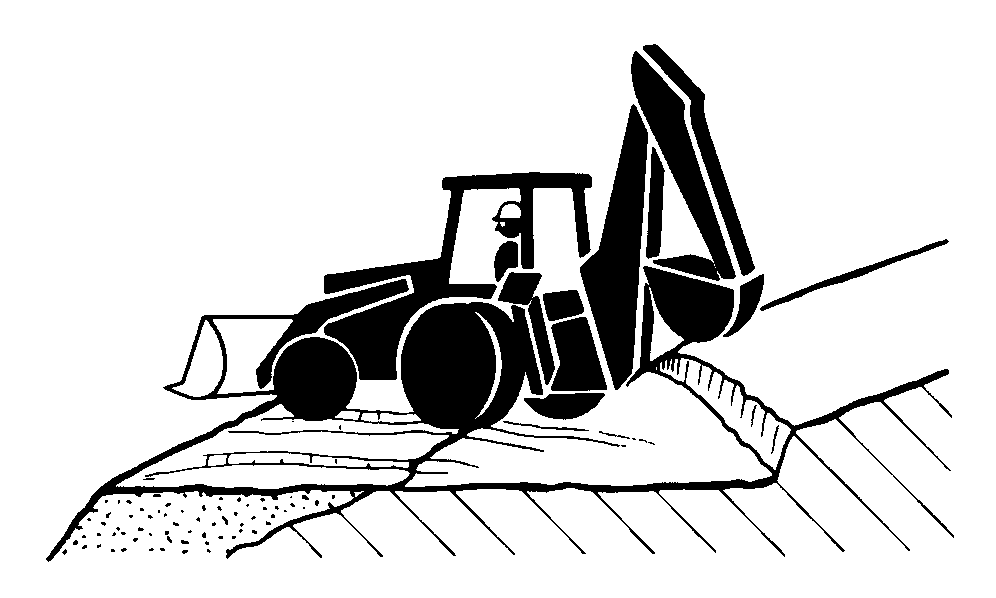

4. Compact windrow spoil with leading front tire ONLY.

T7208BB
T7208BC

TX,35,BD2121 -19-07OCT96-2/3

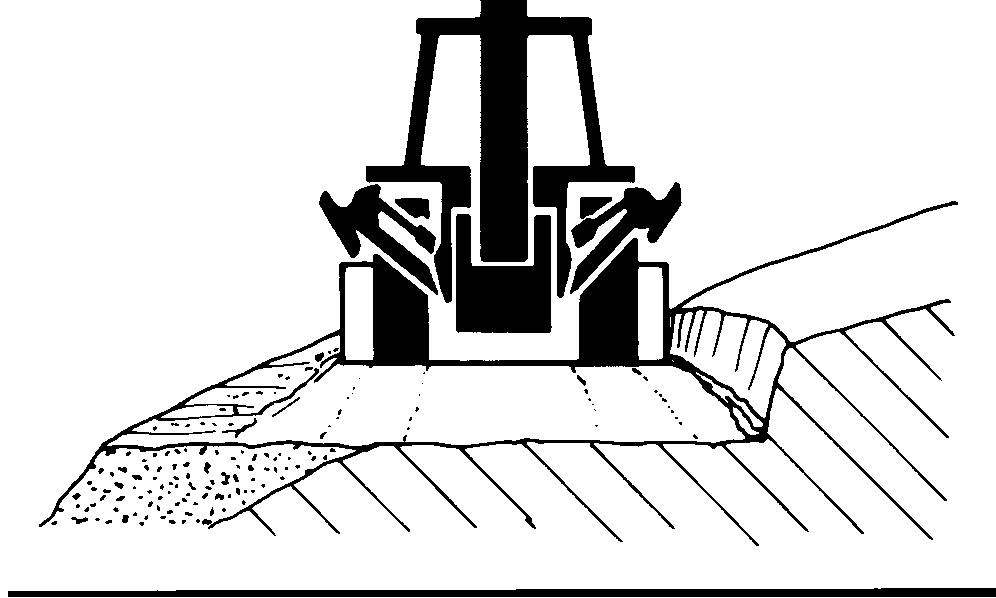

5. Make a final grading pass to straighten uphill bank and level bench.

T7208BD

TX,35,BD2121 -19-07OCT96-3/3
