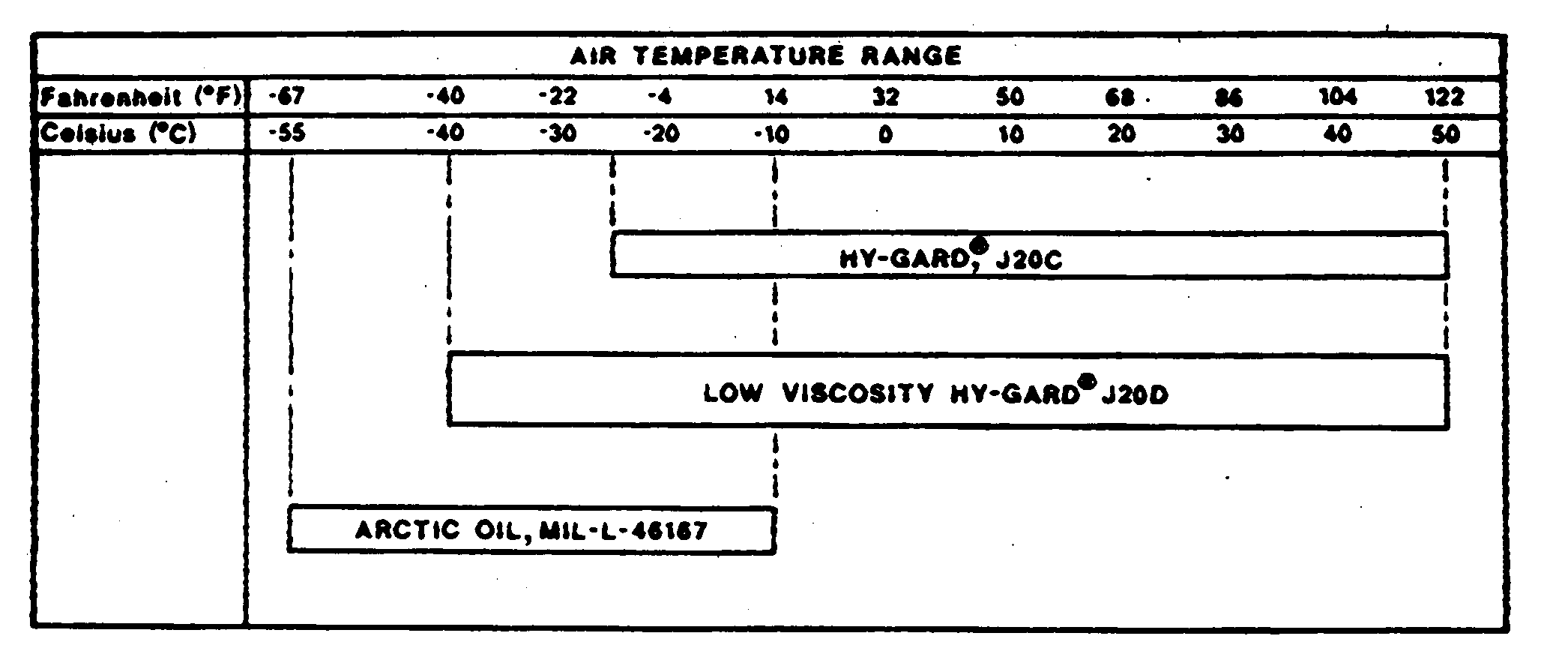

Depending on the expected air temperature range between oil changes, use oil viscosity shown on the chart above.

JOHN DEERE HY-GARD ® TRANSMISSION AND HYDRAULIC OIL IS RECOMMENDED because it is specifically formulated to minimize brake chatter, and to provide maximum protection against mechanical wear.

You may also use oils which meet minimum John Deere standards, or other oils meeting John Deere Standard JDM J20C and J20D.

Oils meeting MIL-L-46167A may be used as arctic oil.

HY-GARD is a trademark of Deere & Company

TX,45,BD2127 -19-07OCT96-1/1
