Check MFWD Axle Oil Level-If Equipped

1. Remove plug (A) to check oil level. Oil should be filled to bottom of plug.

NOTE: MFWD is filled with API GL-5 gear oil at the factory. If oil level is low, use HY-GARD oil to fill to proper level.

2. Add oil as necessary through plug hole. (See Fuels and Lubricants chapter for type of oil.)

3. Install plug.

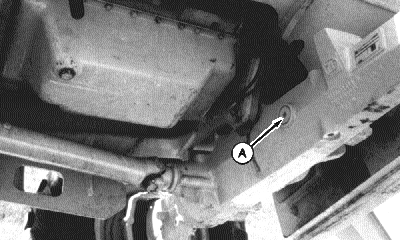

A-Plug

T102819

TX,75,BD2152 -19-06MAY98-1/1
