OMT166701 D1: 410G Backhoe Loader, Block File: TX_85_BD2167_19_07OCT96.htm

Clean Engine Crankcase Ventilation Tube

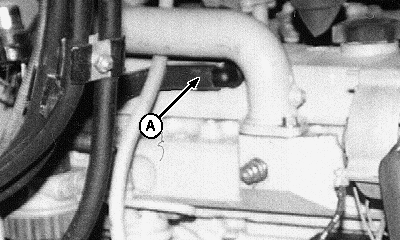

Remove vent tube (A) and clean interior using diesel fuel.

A-Vent Tube

T105323

TX,85,BD2167 -19-07OCT96-1/1
