Change MFWD Front Wheel Planetary Housing Oil-If Equipped

1. Rotate wheel so drain plug (A) is at its lowest point, remove plug and drain oil. Dispose of waste oil properly.

Specification

MFWD Front Wheel Planetary Housing Oil -Capacity 1 L (1.1 qt)

2. Install drain plug.

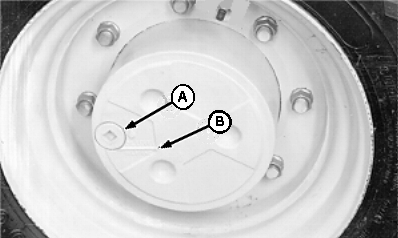

3. Rotate wheel so plug (A) is above OIL LEVEL line (B) when line is horizontal.

4. Add oil to bottom of fill plug hole and install plug. (See Fuels and Lubricants chapter for proper type of oil.)


A-Plug
B-Oil Level Line

T7371AP
T105325

TX,85,BD2169 -19-24JUL00-1/1
