Windshield Wiper and Washer

T138479D-UN-28FEB01

T138528B-UN-28FEB01

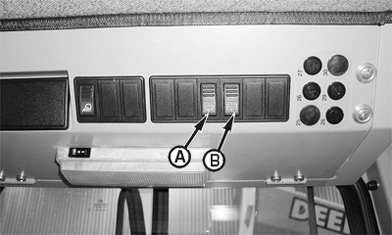

A - Front Windshield Wiper/Washer Switch
B - Rear Window Wiper/Washer Switch

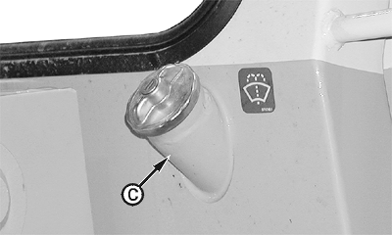

C - Washer Fluid Fill Port
Push the lower half of front windshield wiper/washer switch
(A) to turn front windshield wipers ON. Push lower half of front windshield
wiper/washer switch to it furthest position and hold to operate wiper/washer.
Push upper half of switch to turn wipers OFF.
Push the lower half of rear window wiper/washer switch (B) to
turn front windshield wipers ON. Push lower half of rear window wiper/washer
switch to it furthest position and hold to operate wiper/washer. Push
upper half of switch to turn wipers OFF.
Fill the washer fluid reservoir through the washer fluid fill
port (A), located below the lower left corner of the windshield.
|
|
OUO1043,000041A-19-20010228
|
|
