Adjust Air Suspension Seat—If Equipped

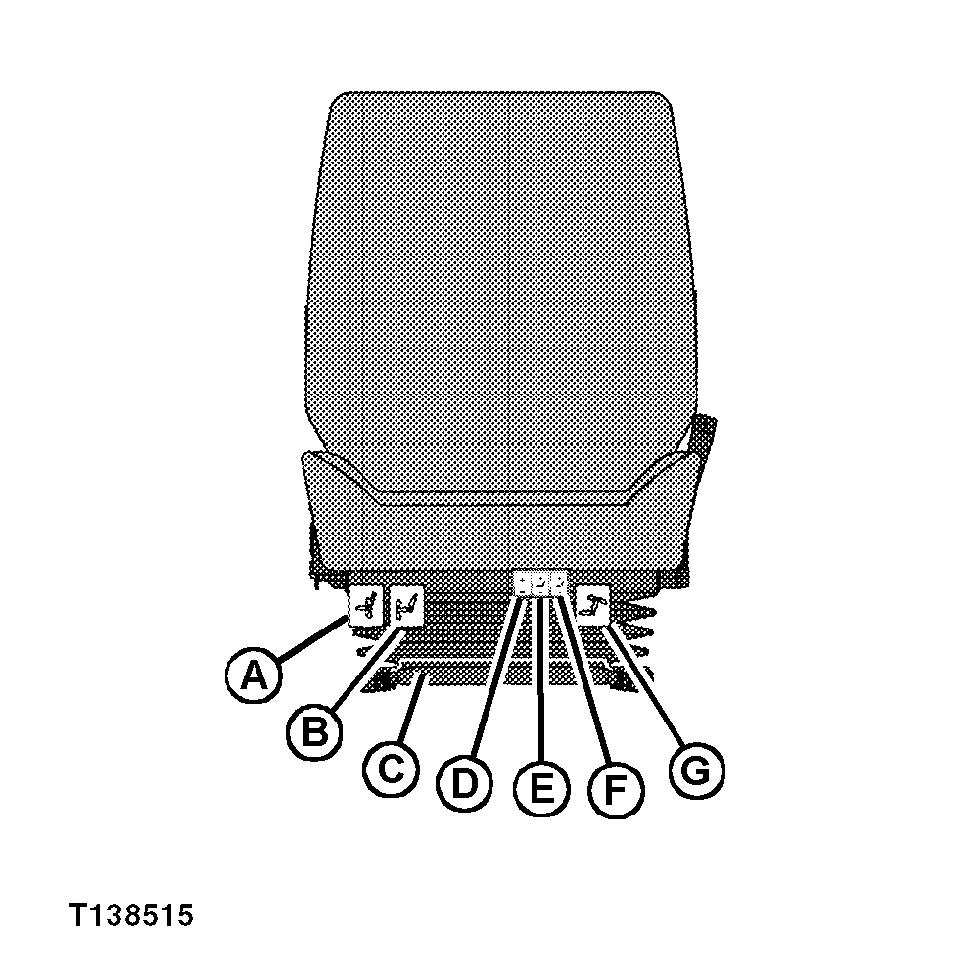

T138515-UN-01MAR01

A - Seat Tilt Adjustment Lever

B - Seat Cushion Adjustment Lever

C - Fore-Aft Adjustment Lever

D - Seat Suspension Adjustment Button

E - Lumbar Support Adjustment Button

F - Upper Back Support Adjustment Button

G - Seat Back Tilt Lever

Lift seat tilt adjustment lever (A) to tilt seat cushion and seat back together. Release lever to lock seat into position.

Lift seat cushion adjustment lever (B) and lift or lower seat cushion front to desired position. Release lever to lock seat into position.

Lift seat tilt adjustment lever and seat cushion adjustment lever at the same time to adjust seat height. Release levers to lock seat into place.

Lift seat fore-aft lever (C) to move seat forward or rearward. Release lever to lock seat into position.

Push top (+) or bottom (-) of seat suspension adjustment button (D) to adjust seat suspension to most comfortable suspension.

Push top (+) or bottom (-) of lumbar support adjustment button (E) to adjust seat back lumbar support to the most comfortable position.

Push top (+) or bottom (-) of upper back support adjustment button (F) to adjust seat back upper back support to the most comfortable position.

Lift seat back tilt lever (G) to adjust seat back tilt. Release lever to lock seat back into position.
