Steering the Machine


Straight Travel

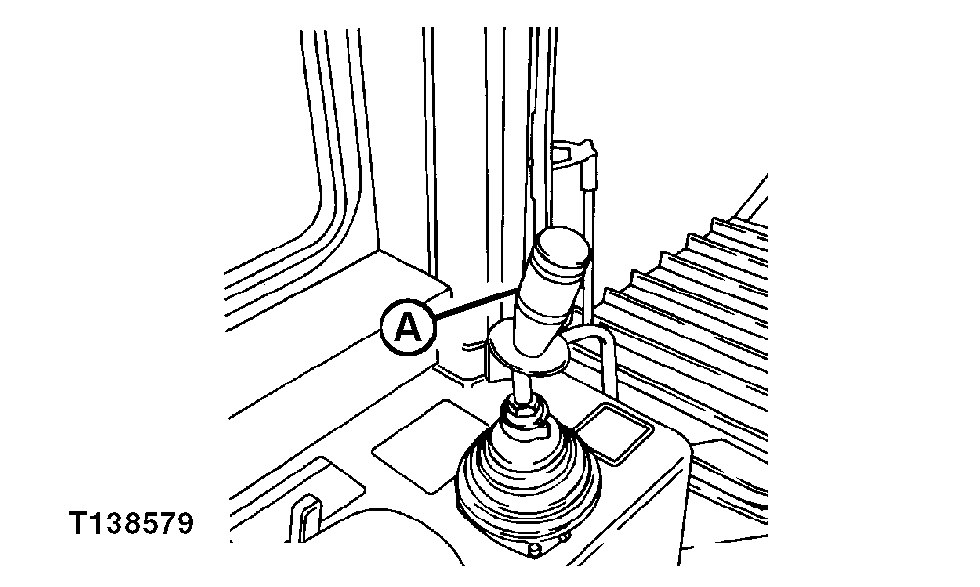

T138579
T138579-UN-02MAR01

A - FNR Lever

Push FNR lever (A) slowly forward for straight forward travel. Machine forward travel speed increases as the FNR lever is pushed further forward.

Pull FNR lever slowly rearward for straight reverse travel. Machine reverse travel speed increases as the FNR lever is pulled further rearward.


Counter-Rotation Turns

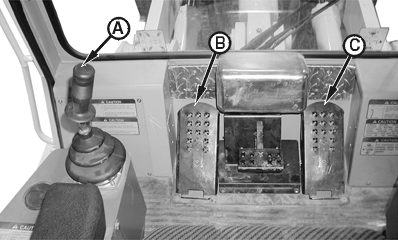

T138582C
T138582C-UN-27FEB01

T138583
T138583-UN-02MAR01

T138584
T138584-UN-02MAR01

A - FNR Lever

B - Left Side Steering Pedal

C - Right Side Steering Pedal

D - Left Hand Counter-Rotation Turn

E - Right Hand Counter-Rotation Turn

For left hand counter-rotation turns (D), fully depress left steering pedal (B) and push FNR lever (A) forward. The machine will turn faster as the FNR lever is pushed further forward.

For right hand counter-rotation turns (E), fully depress right steering pedal (C) and push FNR lever forward. The machine will turn faster as the FNR lever is pushed further forward.


Pivot Turns

T138582C
T138582C-UN-27FEB01

T138586
T138586-UN-02MAR01

T138587
T138587-UN-02MAR01

A - FNR Lever

B - Left Side Steering Pedal

C - Right Side Steering Pedal

D - Left Hand Pivot Turn

E - Right Hand Pivot Turn

For left hand pivot turns (D), push FNR lever (A) forward and slowly depress left steering pedal (B). The machine moves forward and slightly to the left. Depressing the left steering pedal further will cause the machine to turn tighter.

For right hand pivot turns (E), push FNR lever (A) forward and slowly depress right steering pedal (C). The machine moves forward and slightly to the right. Depressing the right steering pedal further will cause the machine to turn tighter.

OUO1043,0000434-19-20010228
