Replace Final Fuel Filter-748G-III

1. Close fuel shut-off valve at bottom of fuel tank.

NOTE: Keep a small container under drain plug to catch draining fuel.

2. Loosen bleed plug (C) on side of filter base. Remove drain plug (B) to drain fuel from fuel filter. Dispose of waste properly.

3. With fuel filter firm against base, lift up on top retaining spring and pull down on bottom retaining spring. Pull fuel filter off guide pins (A) of fuel filter base and discard.

4. Install new fuel filter onto guide pins of fuel filter base. Holder filter firmly against base.

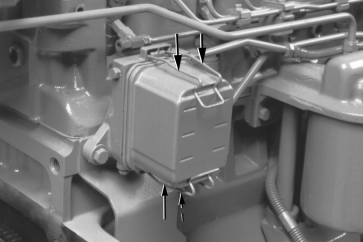

5. Secure bottom filter retaining spring first, then secure top retaining spring (four arrows).

6. Install new drain plug (B). Tighten bleed plug and drain plug securely. Do not overtighten.

7. Open the fuel shut-off valve and bleed the fuel system. (See Bleed the Fuel System in Maintenance chapter.)

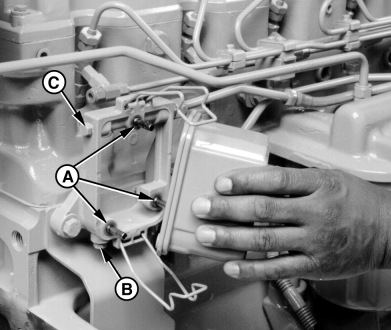

A-Guide Pins
B-Drain Plug
C-Bleed Plug

RG7051
RG7052

CED,OUO1032,1230 -19-24FEB99-1/1
