Winch Free Spool Drag Adjustment

NOTE: The winch drum drag can be adjusted to operator's preference.

2. Lower equipment to ground.

3. Engage park brake.

4. Block wheels.

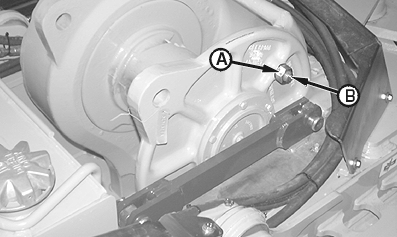

5. Move winch control handle to FREE SPOOL position.

6. Loosen nut (A).

7. Adjust slotted shaft (B) to desired winch drum drag.

8. Tighten nut.

A-Nut
B-Slotted Shaft

CED,OUO1032,3162 -19-18APR00-1/1
