Cold Weather Transmission Disconnect Handle-If Equipped

Use cold weather transmission disconnect handle (A) to disconnect transmission from engine when starting the engine in cold weather.

IMPORTANT: The cold weather disconnect is not designed to be engaged or disengaged when engine is running. Stop the engine before moving the disconnect handle. The disconnect will be severely damaged if engaged with the engine running.

1. Pull lever to disengage transmission from engine.

2. Start engine. Run until engine is warmed up.

3. Stop engine.

4. Push lever to connect transmission to engine.

Be sure transmission is fully connected to engine by checking for approximately 30 mm (1.250 in.) free movement of lever. If free movement is greater than specification the transmission is not connected. "Bump" key switch to start position (do not start engine) to turn engine crankshaft.

Repeat step 4.

5. After transmission is fully connected, start engine.

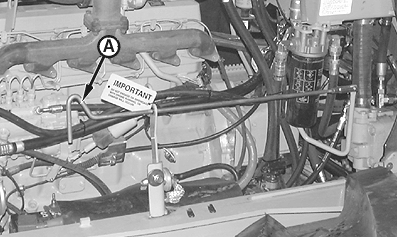

A-Cold Weather Transmission Disconnect Handle

CED,OUO1079,104 -19-03APR00-1/1
