Draining the Cooling System

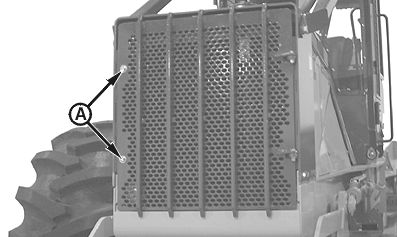

1. Remove two cap screws (A) and open front grille.


A-Cap Screw (2 used)

T129969B

CED,OUO1079,109 -19-05APR00-1/3

NOTE: Approximate capacity of cooling system is 28.4 L (30 qt).

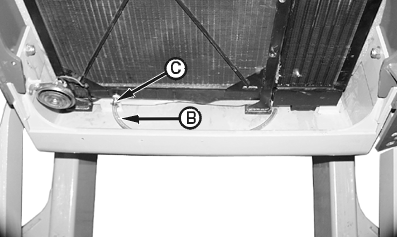

2. Route drain hose (B) outside frame. Turn radiator draincock (C) counterclockwise to open. Drain coolant into a container. Dispose of used coolant properly.


B-Drain Hose
C-Radiator Draincock

T130274B

CED,OUO1079,109 -19-05APR00-2/3

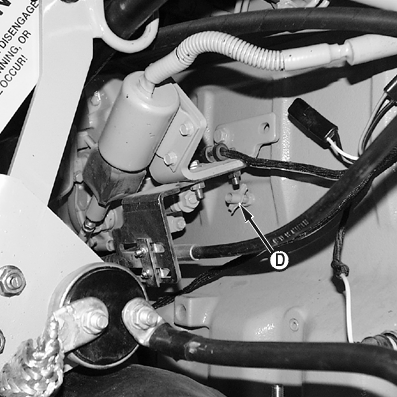

3. Connect hose to engine block coolant draincock (D) on left side of engine. Turn draincock counterclockwise to open. Drain coolant into a container. Dispose of used coolant properly.


D-Engine Block Coolant Draincock

T130275B
