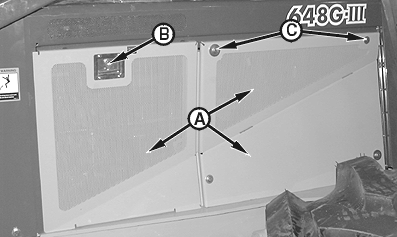

Remove left engine side shields (A). Turn shield latch (B) to remove first shield, and remove cap screws (C) to remove other shields.
A-Engine Side Shields B-Shield Latch C-Cap Screw (5 used)
CED,OUO1079,110 -19-05APR00-1/1
