Fuel Tank
To avoid condensation, fill the fuel tank at the end of each day's operation. |
|
|
| Item | Measurement | Specification |
|---|---|---|
|
Fuel Tank 540G-III |
Capacity | 159 L (42 gal) Approximate |
|
Fuel Tank 548G-III |
Capacity | 189 L (50 gal) Approximate |
|
Fuel Tank 640G-III |
Capacity | 159 L (42 gal) Approximate |
|
Fuel Tank 648G-III Single Function |
Capacity | 265 L (70 gal) Approximate |
|
Fuel Tank 648G-III Dual Function |
Capacity | 227 L (60 gal) Approximate |
|
Fuel Tank 748G-III |
Capacity | 273 L (72 gal) Approximate |
|

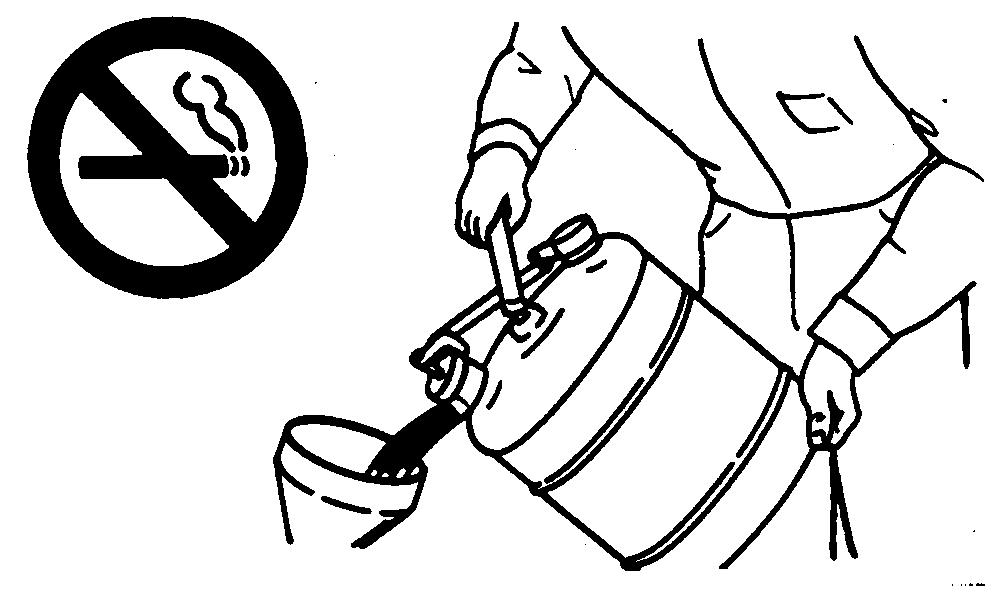

CAUTION:
Handle fuel carefully. If the engine is hot or running, do not fill the fuel tank. Do not smoke while you fill fuel tank or work on fuel system.
