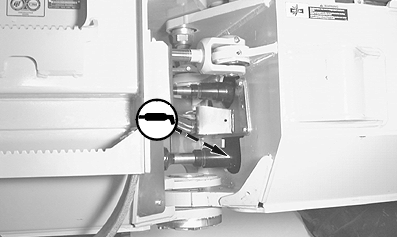

Lubricate Lower Telescoping Drive Shaft

CAUTION: Prevent possible injury from unexpected machine movement. Install frame locking bar before servicing machine.

Use a low pressure grease gun.

Lubricate until grease escapes around seals.

NOTE: If operating machine in deep mud or snow, lubricate daily or every 10 hours.

If operating machine in water, lubricate twice daily or every five hours.

CED,OUO1079,134 -19-06APR00-1/1
