Replace Transmission Oil Filter

causym CAUTION: Prevent possible injury from unexpected machine movement. Install frame locking bar.

1. Install frame locking bar.

NOTE: A filter wrench may be required for this procedure.

2. Remove left side engine shield covers.

CED,OUO1079,138 -19-07APR00-1/2

3. Turn transmission oil filter (A) counterclockwise to remove.

4. Clean mounting surface. Apply thin film of oil to gasket of new filter.

5. Install new filter. Tighten filter 3/4-1 full turn after seal contacts mounting base.

6. Tighten 1/2-3/4 turn more.

7. Add oil. (See Fuels and Lubricants chapter.)

8. Start engine and run for five minutes.

9. Check oil level on transmission dipstick. Add oil if necessary.

10. Stop engine. Check for leaks around the filter. Tighten filter only enough to stop leaks.

11. Check oil level on transmission dipstick. Add oil if necessary.

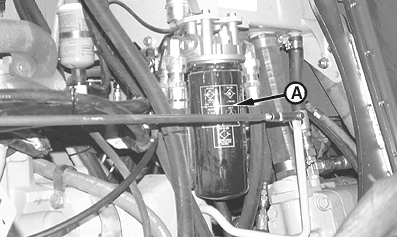

T129923C


A-Transmission Oil Filter

CED,OUO1079,138 -19-07APR00-2/2
