Replace Hydraulic Oil Filter

1. Turn hydraulic oil filter (A) counterclockwise to remove.

2. Clean mounting surface. Apply thin film of oil to gasket of new filter.

3. Install new filter. Tighten filter 3/4-1 full turn after seal contacts mounting base.

4. Loosen filter element 2 full turns. Repeat step 3.

5. Start engine. Check for leaks around the filter base. Tighten filter only enough to stop leaks.

6. Stop engine. Check oil level.

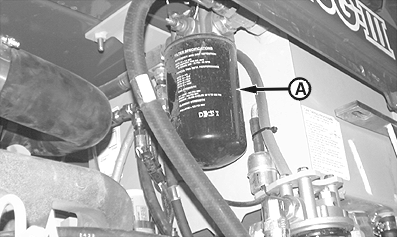

T130042B


A-Hydraulic Oil Filter

CED,OUO1079,140 -19-07APR00-1/3

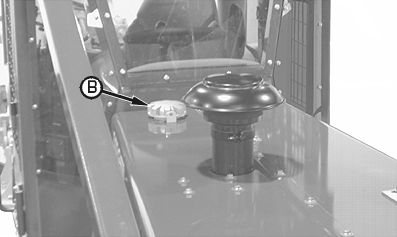

7. Add oil at hydraulic reservoir fill cap (B). The approximate oil capacity of the hydraulic oil filter is 1.5 L (1.6 qt). (See Fuels and Lubricants chapter.)

8. Start engine and run for two minutes to filter.

9. Stop engine. Check hydraulic reservoir oil level.

10. Check for leaks around the filter base. Tighten filter only enough to stop leaks.


B-Hydraulic Reservoir Fill Cap

T130043B

CED,OUO1079,140 -19-07APR00-2/3

11.

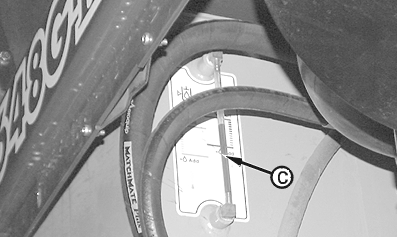

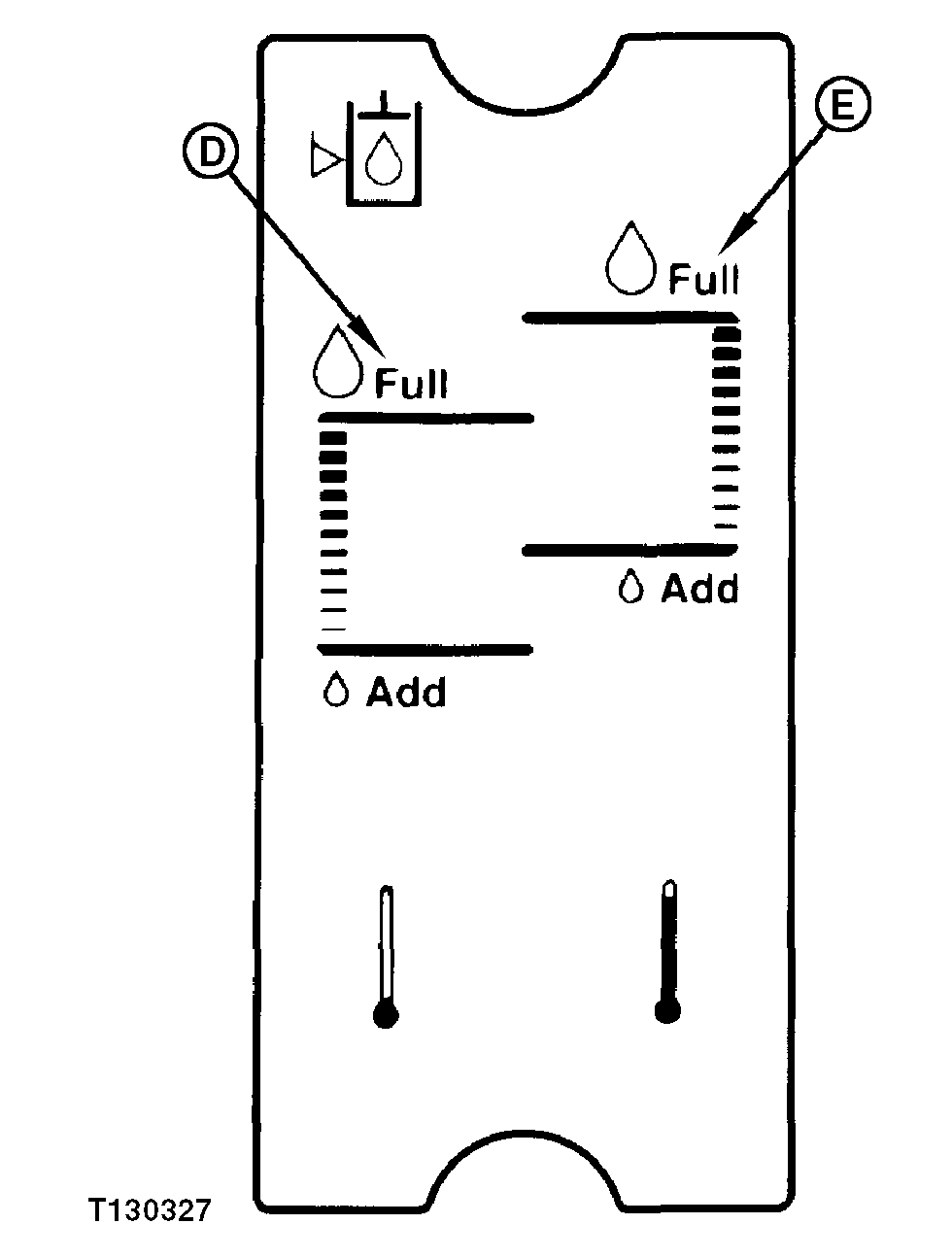

Oil level must be seen in sight tube (C). Use blue scale (D) when machine hydraulic oil is not at operating temperature. Use red scale (E) when machine hydraulic oil is at operating temperature.


C-Sight Tube
D-Blue (Cold Oil) Scale
E-Red (Warm Oil) Scale

T130004C
T130327

CED,OUO1079,140 -19-07APR00-3/3
