Adjusting Seat

Seat height adjusts automatically to weight of operator.

1. Pull forward and aft lever (A) up to move seat forward or to the rear. Release forward and aft lever to lock seat in desired position.

2. Pull swivel lever to swivel seat. Release swivel lever to lock seat in any of three positions:

  • 15° right of center
  • 22.5° right of center
  • 30° right of center

3. Turn knob (B) clockwise for firm ride or counterclockwise for soft ride.

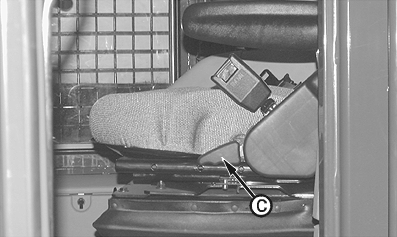

4. While sitting in seat, lift backrest tilt adjustment lever (C) and allow cushion to angle forward or lean backward. Release handle to lock backrest in desired position.

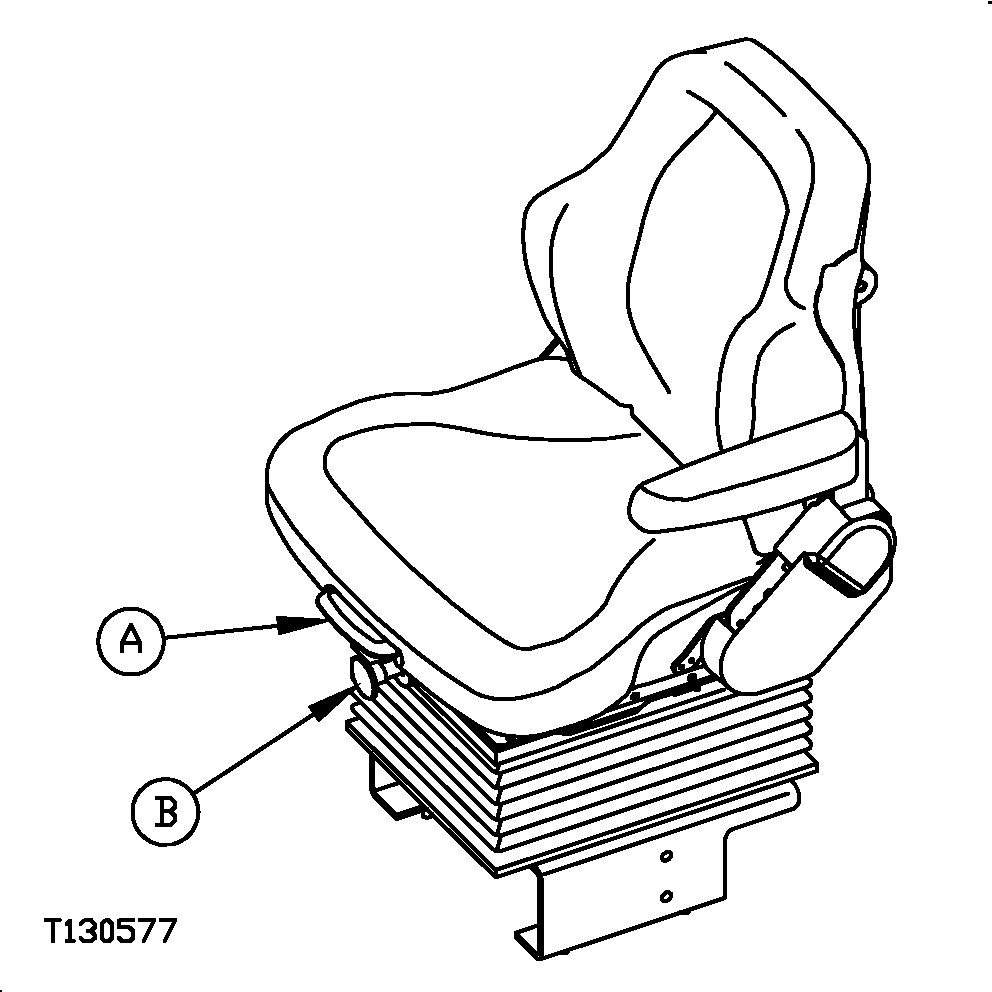

A-Forward and Aft Lever
B-Knob
C-Tilt Adjustment Lever

T130577
T129672D

CED,OUO1079,151 -19-10APR00-1/1
