Replace Air Cleaner Elements

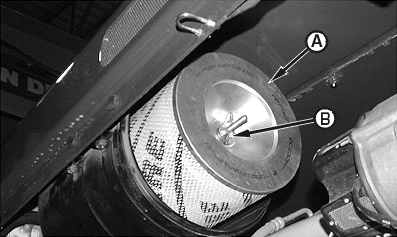

2. Remove wing nut (B) and primary air filter (A).

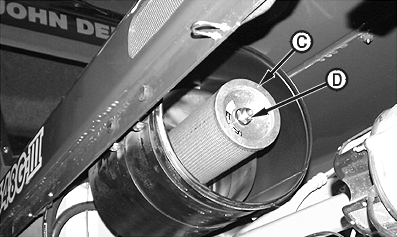

3. Remove nut (D) and secondary air filter (C).

4. Clean air cleaner canister.

5. Install new secondary air filter, making sure it is centered in canister. Install nut.

6. Install new primary air filter. Install wing nut.

7. Install canister cover.

A-Primary Air Filter
B-Wing Nut
C-Secondary Air Filter
D-Nut

CED,OUO1079,153 -19-11APR00-1/1
