Replace Differential Lock Inlet Filter

1. Tilt the cab to gain access to hydraulic fittings. (See Hydraulic Cab Tilt Procedure in Maintenance chapter.)

2. Replace the differential lock inlet filter (A).

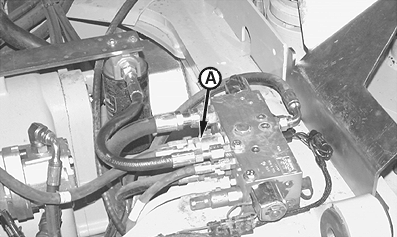

A-Differential Lock Inlet Filter

T130147B

CED,OUO1079,155 -19-11APR00-1/1
