Grapple and Arch Control Lever (Single Function)-If Equipped

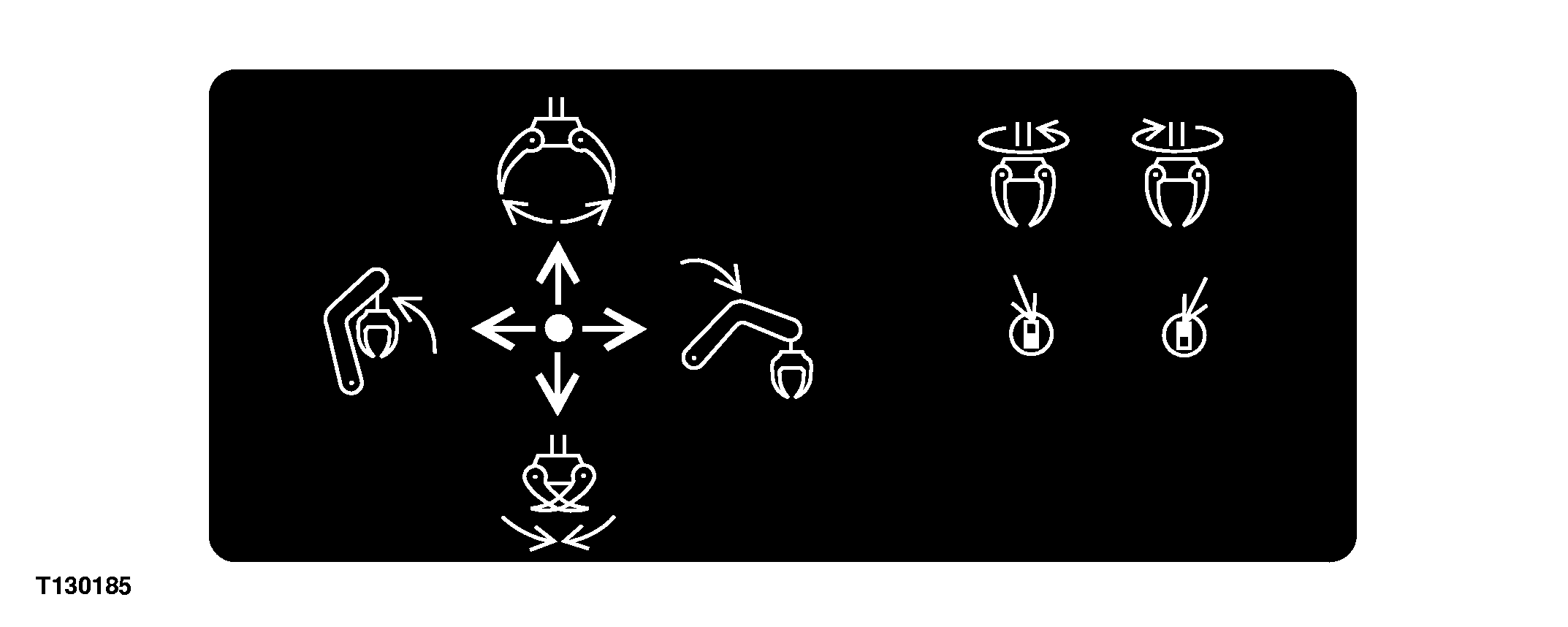

T130185

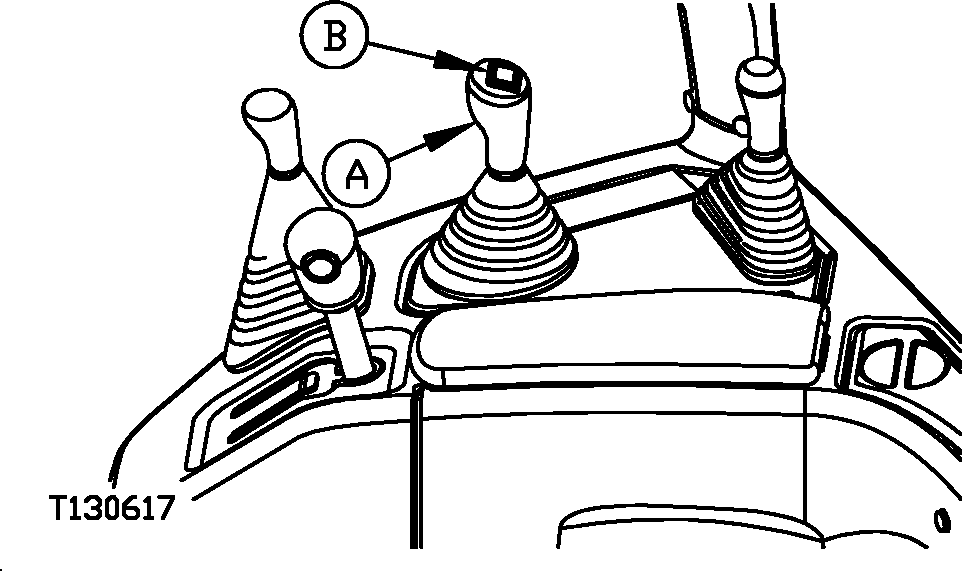

A-Arch and Grapple Control Lever
B-Grapple Rotate Switch

Sitting in operator's seat:

1. Push arch and grapple control lever (A) forward to raise arch.

2. Pull arch and grapple control lever rearward to lower arch.

3. Push arch and grapple control lever right to open grapple.

4. Pull arch and grapple control lever left to close grapple.

When skidding logs, pull arch and grapple control lever left to GRAPPLE CLOSE detent. This keeps a clamping force on the load at all times.

5. Push upper half of grapple rotate switch (B) to rotate grapple clockwise.

6. Push lower half of grapple rotate switch to rotate grapple counterclockwise.

T130617

CED,OUO1079,160 -19-11APR00-1/1
