Changing Reverse Warning Alarm Volume

IMPORTANT: The reverse warning alarm is set on LOW volume at the factory. It may be necessary to adjust the volume to meet local regulations.

1. Remove cap screws (A) and rear frame access panel (B).

2. Set the volume switch (D) on the reverse warning alarm (C) to the desired position.

Remove the reverse warning alarm box from the machine if necessary to reach the volume switch.


A-Cap Screw (4 used)
B-Rear Frame Access Panel
C-Reverse Warning Alarm
D-Volume Switch

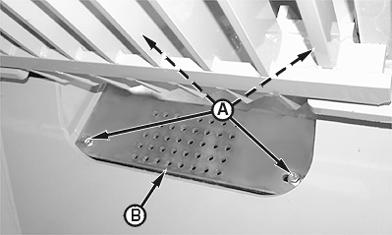

T130874B

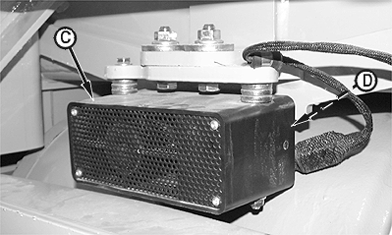

T130875B

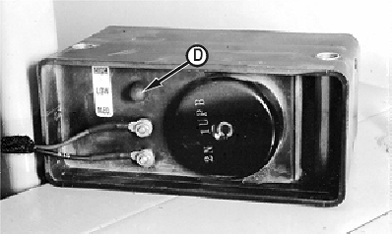

T130877

Removed from Machine for Clarity of Photo

CED,OUO1079,185 -19-14APR00-1/1
