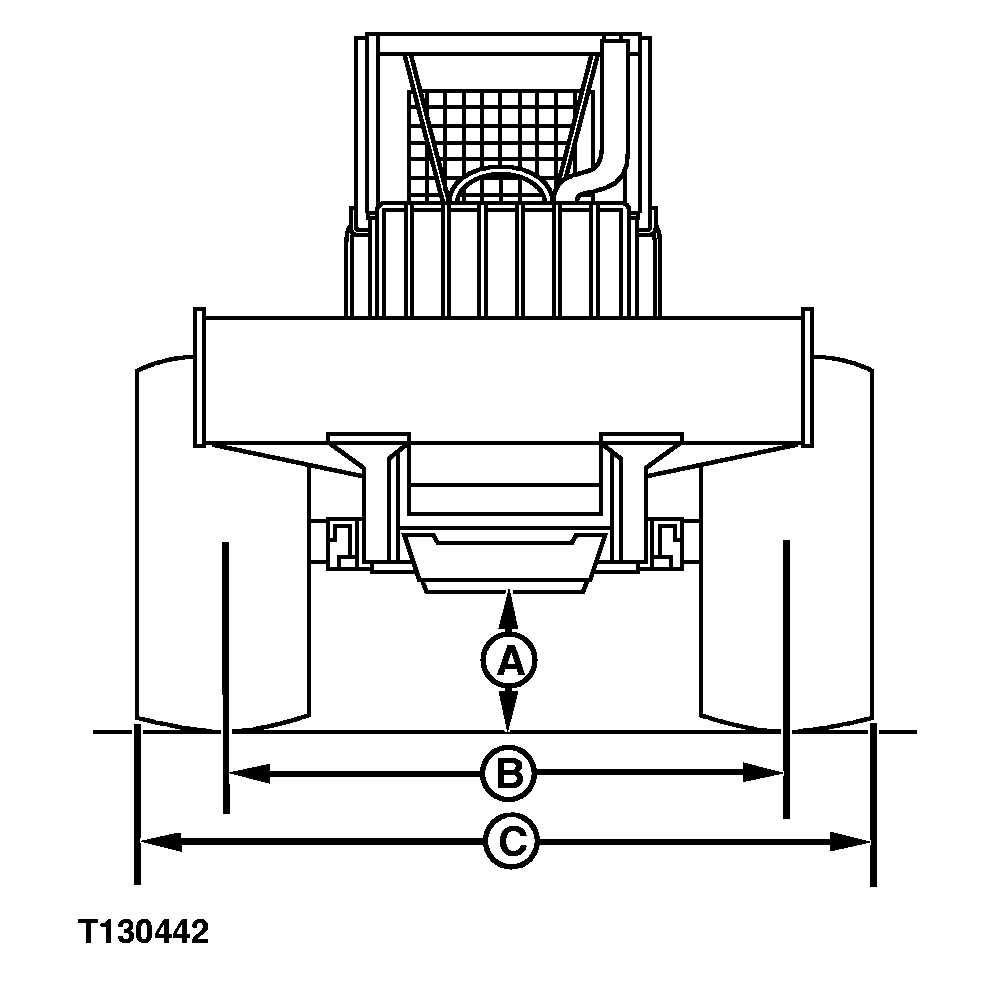

648G-III Grapple Skidder Dimensions
|
|
NOTE: Specifications and design subject to change without notice. Whenever applicable, specifications are in accordance with ICED and SAE standards. Except where otherwise noted, these specifications are based on a unit with roll-over protective structure, full fuel tank, |

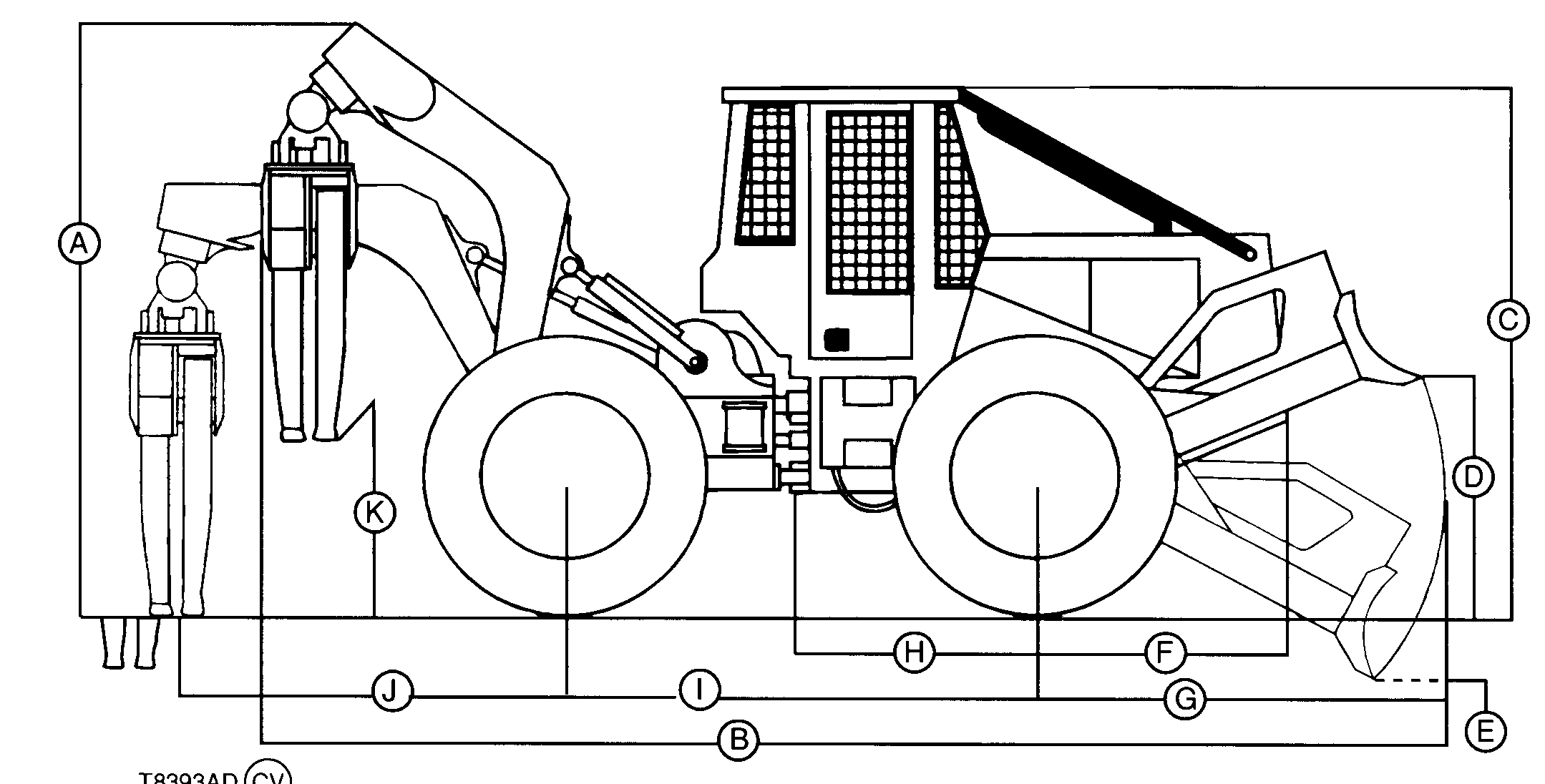

80 kg (175 lb) operator, and standard equipment. NOTE: Side view dimensions are for machine equipped with 28L-26 12 PR LS2 tires and adjustable log arch. |
| Item | Measurement | Specification |
|---|---|---|
|
A-Maximum Boom Height (Single Function) |
Height | 3195 mm (10 ft 6 in.) |
|
A-Maximum Boom Height (Dual Function) |
Height | 3680 mm (12 ft 9 in.) |
|
B-Overall Length (Single Function) |
Length | 7230 mm (23 ft 8.6 in.) |
|
B-Overall Length (Dual Function) |
Length | 7345 mm (24 ft 1 in.) |
|
C-Overall Height |
Height | 3030 mm (9 ft 11 in.) |
|
C-Overall Height with Factory-Installed Water Tank |
Height | 3190 mm (10 ft 5 in.) |
|
D-Maximum Blade Lift Above Ground |
Height | 1310 mm (4 ft 4 in.) |
CED,OUO1079,200 -19-14APR00-1/3 |
| Item | Measurement | Specification |
|---|---|---|
|
E-Maximum Blade Dig Below Ground |
Depth | 367 mm (1 ft 2.4 in.) |
|
F-Front Axle to Front of Machine |
Distance | 1685 mm (5 ft 6 in.) |
|
G-Front Axle To Blade Cutting Edge Arc |
Distance | 2292 mm (7 ft 6 in.) |
|
H-Front Axle to Articulation Joint |
Distance | 1727 mm (5 ft 8 in.) |
|
I-Wheelbase (Single Function) |
Distance | 3430 mm (11 ft 3 in.) |
|
I-Wheelbase (Dual Function) |
Distance | 3683 mm (12 ft 1 in.) |
|
J-Reach of Grapple at Ground Level (Single Function) |
Distance | 2243 mm (7 ft 4.3 in.) |
|
J-Reach of Grapple at Ground Level (Dual Function) |
Distance | 1536 mm (5 ft 1 in.) |
|
K-Height of Grapple from Ground Level (Single Function) |
Height | 908 mm (2 ft 7 in.) |
|
K-Height of Grapple from Ground Level (Dual Function) |
Height | 1376 mm (4 ft 6 in.) |
CED,OUO1079,200 -19-14APR00-2/3 |
|
