648G-III Grapple Skidder
|
| GRAPPLE: The grapple has been engineered to provide durability and performance. A grease adjustable oscillation damper improves component life and reduces maintenance requirements. Constant pressure to keep the grapple closed on the load is a standard feature. Grapple shape and clamping force have been engineered to maximize load retention. |
| Item | Measurement | Specification |
|---|---|---|
| Standard Grapple Head | ||
|

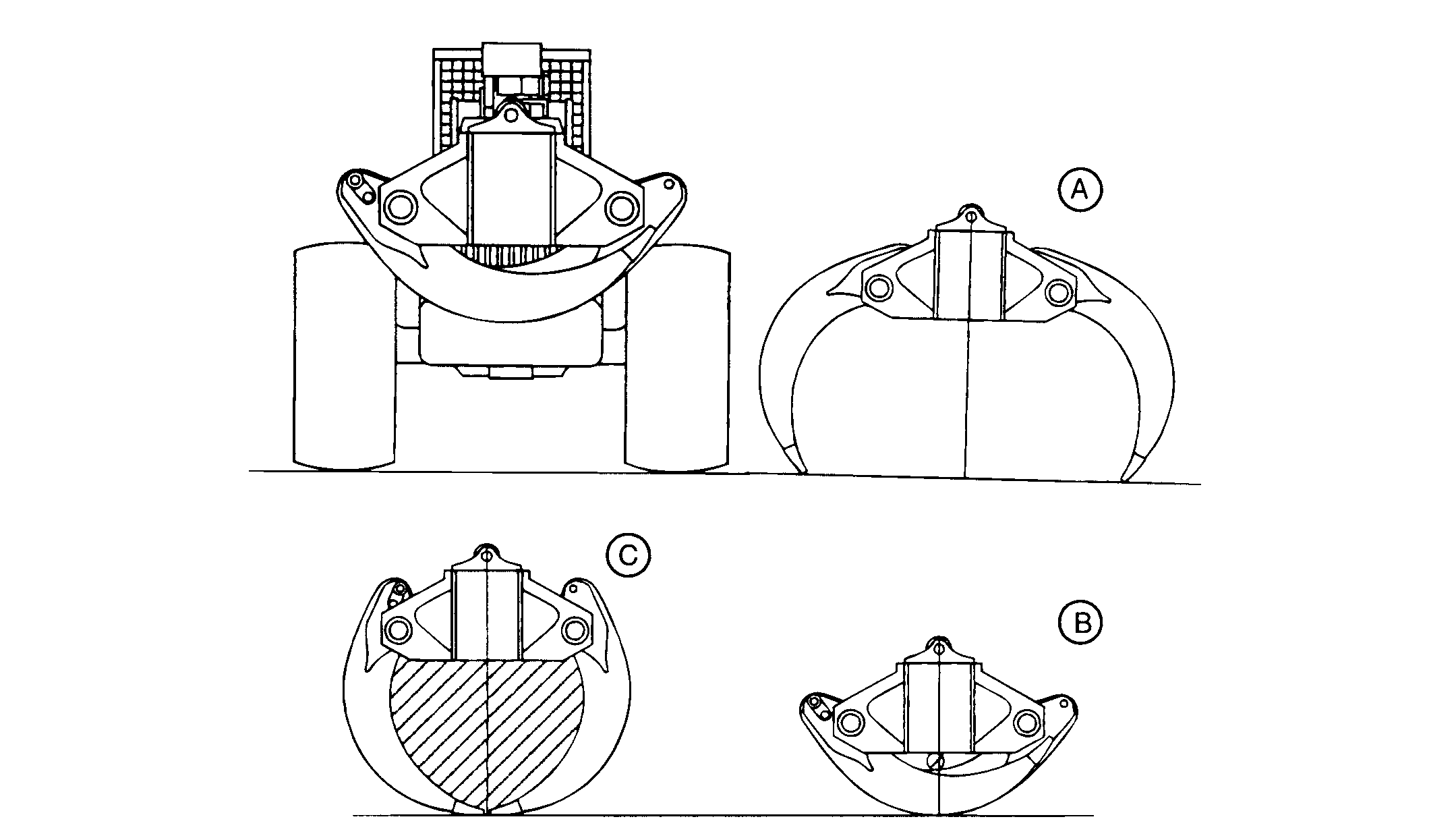

A-Tong Opening at Tips |
Distance | 2921 mm (9 ft 6 in.) |
|
B-Minimum Diameter of Stem |
Diameter | 140 mm (5.5 in.) |
|
C-Enclosure Area Tongs Tip-to-Tip |
Area | 0.97 sq m (10.4 sq ft) |
| High Capacity Grapple Head | ||
|
A-Tong Opening at Tips |
Distance | 3124 mm (10 ft 3 in.) |
|
B-Minimum Diameter of Stem |
Diameter | 132 mm (5.2 in.) |
|
C-Enclosure Area Tongs Tip-to-Tip |
Area | 1.09 sq m (11.7 sq ft) |
CED,OUO1079,202 -19-14APR00-1/1 |
