Clean Debris from Condenser and Oil Cooler-If Equipped, and Radiator

1. Open radiator grille and remove left engine side shield.

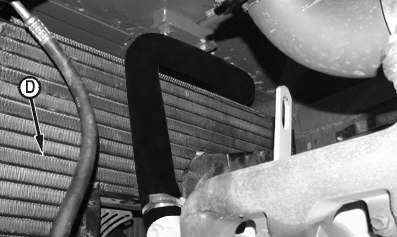

2. Clean radiator fins (A), oil cooler fins (B), and condenser fins (D) with compressed air.

3. Remove debris from basin (C).


A-Radiator Fins
B-Oil Cooler Fins
C-Basin
D-Condenser Fins

T130274D
T130331C

CED,OUO1079,209 -19-17APR00-1/1
