Replacing Grapple Shock-If Equipped

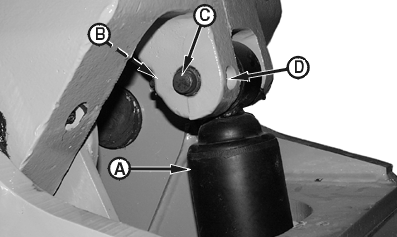

The grapple shock (A) limits the side-to-side swinging of the grapple head.

Replace the grapple shock if the grapple head swings too freely.

1. Remove cotter pin (B), retaining pin (D), and upper pin (C).

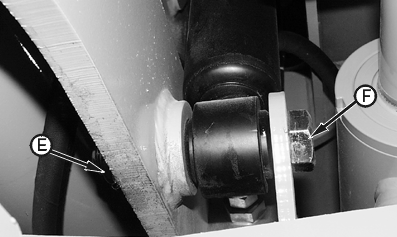

2. Remove nut (E) and cap screw (F).

3. Remove grapple shock from grapple head.

4. Install new grapple shock in grapple head.

5. Install cap screw and nut.

6. Install upper pin, retaining pin, and cotter pin.


A-Grapple Shock
B-Cotter Pin
C-Upper Pin
D-Retaining Pin
E-Nut
F-Cap Screw

T130648B
T130649B

CED,OUO1079,222 -19-27APR00-1/1
