Clean Cab Recirculating Air Filter

NOTE: The cab recirculating air filter is located behind the seat.

1. Remove filter cover (A).

2. Remove cab recirculating air filter (B).

causym CAUTION: Reduce compressed air to less than 210 kPa (2 bar) (30 psi) when using for cleaning purposes. Clear area of bystanders, guard against flying chips, and wear personal protection equipment, including eye protection.

3. Clean cab recirculating air filter in any of these ways:

  • Tap it on a flat surface with the dirty side down.
  • Use compressed air opposite to the normal air flow.
  • Wash it in warm, soapy water. Rinse it and let it dry before using the air conditioner.

4. Install cab recirculating air filter and filter cover.

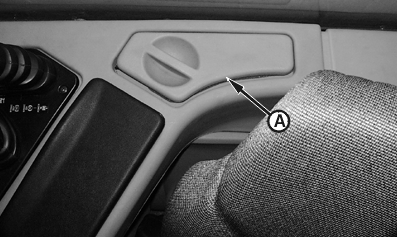

A-Filter Cover
B-Cab Recirculating Air Filter

T130448B
T130449B

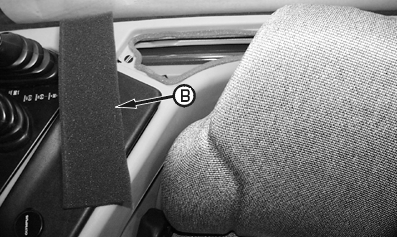

Filter Shown Removed

CED,OUO1079,303 -19-05MAY00-1/1
