Adjusting Air Ride Suspension Seat-If Equipped

Seat height adjusts automatically to weight of operator.

1. Pull forward and aft lever (A) up to move seat forward or to the rear. Release forward and aft lever to lock seat in desired position.

2. Pull swivel lever (B) to swivel seat. Release swivel lever to lock seat in any of three positions:

  • 15° right of center
  • 22.5° right of center
  • 30° right of center

3. Pull ride adjustment knob (C) out to raise seat. Push button in to lower seat. Release button to lock seat in desired position.

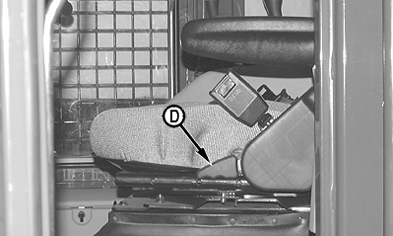

4. While sitting in seat, lift backrest tilt adjustment lever (D) and allow cushion to angle forward or lean backward. Release handle to lock backrest in desired position.

T129567B
T129672B


A-Forward and Aft Lever
B-Swivel Lever
C-Ride Adjustment Knob
D-Backrest Tilt Adjustment Lever

CED,OUO1079,41 -19-29MAR00-1/1
