Work Light Switch and Deluxe Work Light Switch-If Equipped

The work light switch (B), if equipped, has two positions:

  • Left position is OFF.
  • Right position activates front and rear work lights.

The deluxe work light switch (A), if equipped, has three positions:

  • Left position activates front deluxe work lights only.
  • Middle position is OFF.
  • Right position activates front and rear deluxe work lights.

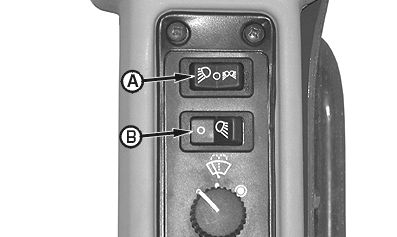

T129542B


A-Deluxe Work Light Switch
B-Work Light Switch

CED,OUO1079,46 -19-29MAR00-1/1
