Removing Operator's Station Door Window Screens

Operator's station door window screens can be hinged out or removed to clean windows. Always install screens after cleaning. The screens are part of the OPS personal protection package for the operator.

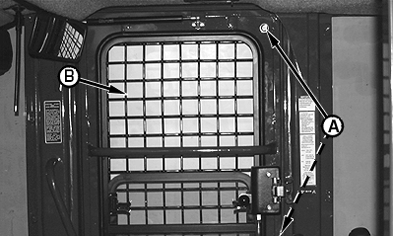

1. Remove cap screws (A).

2. Push screen (B) out and slide screen off hinge.


A-Cap Screw (2 used)
B-Window Screen

T129553B

CED,OUO1079,47 -19-29MAR00-1/1
