Defrosting, Heating, and Air Conditioning Controls-If Equipped

NOTE: Blower knob must be in an ON position, defroster, heater, and air conditioner switch must be set, and temperature control knob must be adjusted for defroster, heater, or air conditioner to work effectively.

Push the defroster, heater, and air conditioner switch (C) to the appropriate setting. The defroster, heater, and air conditioner switch has three positions:

  • Left position activates the defroster when the temperature control knob is turned clockwise to HOT.
  • Middle position activates heater when the temperature control knob is turned clockwise to HOT or the vent when the temperature control knob is turned counterclockwise to COLD.
  • Right position activates the air conditioner when the temperature control knob is turned counterclockwise to COLD.

Turn temperature control knob (B) to adjust air temperature. Turn clockwise towards HOT (red) for warmer air or counterclockwise towards COLD (blue) for cooler air.

Turn blower knob (A) clockwise to increase blower speed or counterclockwise to reduce blower speed. The blower knob has four speed settings plus an OFF position.

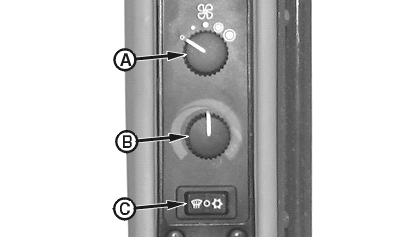

T129541B


A-Blower Knob
B-Temperature Control Knob
C-Defroster, Heater, and Air Conditioner Switch
