2. Remove hose cover (B).
3. Turn shut-off valve lever (C) to turn water on.
4. Squeeze nozzle lever (D) to spray water.

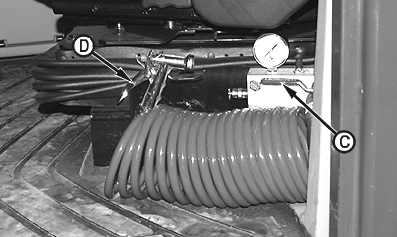

A-Hose Cover Latch B-Hose Cover C-Shut-Off Valve Lever D-Nozzle Lever
CED,OUO1079,53 -19-29MAR00-1/1
