Starting Fluid-If Equipped (Cold Weather Starting Aid)

CAUTION: Prevent possible injury from exploding container. Starting fluid is highly flammable. Keep container away from heat, sparks, and open flame. Contents are pressurized. DO NOT puncture or incinerate container. Remove container from machine if engine does not need starting fluid.

IMPORTANT: Prevent damage to engine. Use starting aid when temperatures are below 4°C (40°F) and only when engine is COLD.

CED,OUO1079,56 -19-29MAR00-1/3

IMPORTANT: Excess starting fluid could damage engine; press upper half of starting aid switch only when engine is cold and cranking. Starting aid fluid is being injected into engine as long as switch is pressed.

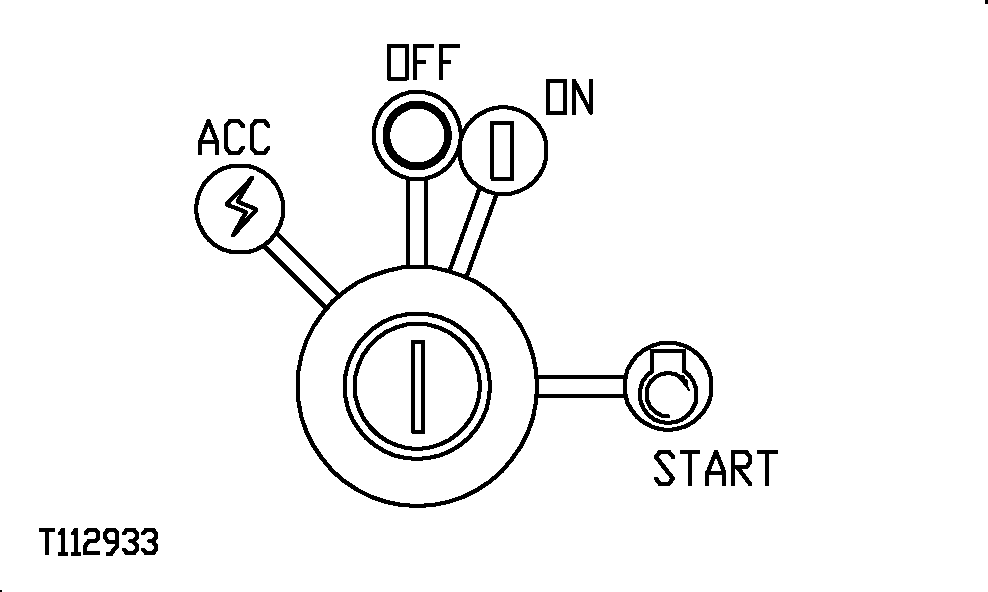

2. After one or two revolutions of engine crankshaft, press upper half of starting aid switch (A) and hold until engine starts. Crank engine for 20 seconds maximum, then allow two minutes between cranking periods.

A-Starting Aid Switch

CED,OUO1079,56 -19-29MAR00-2/3

2. Turn starting aid can (B) counterclockwise to remove.

3. Turn starting aid can clockwise in base (C) to install starting aid can. Tighten clamp.

IMPORTANT: Protect starting aid components from possible damage. Install starting aid plug.

Remove starting aid can from base and install starting aid plug.

A-Clamp
B-Starting Aid Can
C-Base

CED,OUO1079,56 -19-29MAR00-3/3
