Stopping the Engine

IMPORTANT: If engine stops when operating under load, remove load. Restart engine immediately. Run 30 seconds at 1/2 speed before adding load.

1. Park machine on a level surface.

2. Lower equipment to ground.

CED,OUO1079,58 -19-29MAR00-1/3

causym CAUTION: Prevent possible injury from unexpected machine movement. Always move transmission control and park brake lever to PARK position "P", and shut engine OFF before leaving the operator's seat.

3. Move transmission control and park brake lever (A) to PARK position "P". Lever sleeve (B) must drop into slot of console.

IMPORTANT: Turbocharger may be damaged if engine is not properly shut down.

4. Run engine at 1/2 speed for two minutes before stopping to avoid damage to turbocharger. Release accelerator pedal to slow idle.

5. Turn key switch to OFF.

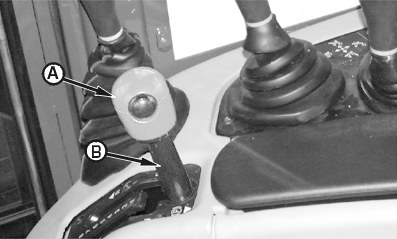

T129688B


A-Transmission Control and Park Brake Lever
B-Lever Sleeve

CED,OUO1079,58 -19-29MAR00-2/3

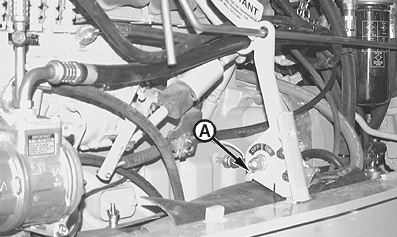

6. Turn battery disconnect switch (A) OFF.


A-Battery Disconnect Switch

T129968B

CED,OUO1079,58 -19-29MAR00-3/3
