Accelerator Pedal and Engine Speed Control Knob-If Equipped

Normal operating range is 1/2 to full speed.

Push accelerator pedal (D) to increase speed. Accelerator pedal will override engine speed control knob (A) setting.

Release accelerator pedal to decrease speed. Accelerator pedal will return to engine speed control knob setting.

If equipped with engine speed control knob, move engine speed control knob to adjust engine operating range.

1. Loosen engine speed control knob (A) by turning counterclockwise.

2. Change engine speed by turning engine speed adjustment knob (B) left or right. Turning right, turtle position, will reduce engine speed. Turning left, rabbit position, will increase engine speed.

3. Tighten engine speed control knob to hold engine speed constant.

4. Engine speed can also be adjusted by loosening engine speed control knob, depressing engine speed adjustment button (C), and pulling or pushing engine speed adjustment knob.


A-Engine Speed Control Knob
B-Engine Speed Adjustment Knob
C-Engine Speed Adjustment Button

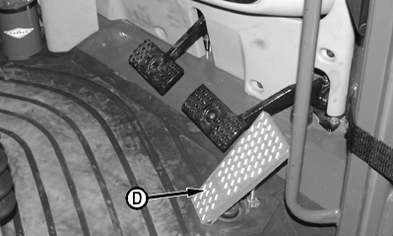

D-Accelerator Pedal

T129555B
T129556B
T129671C

CED,OUO1079,59 -19-29MAR00-1/1
