Service Brake

causym CAUTION: Prevent possible injury from unexpected machine movement. Failure to depress inching pedal before service brake pedal may cause engine to stop.

Depress inching pedal (A) before depressing service brake pedal (B).

If hydraulic system pressure is lost with engine running, an accumulator allows service brake pedal to be depressed 5-10 times before service brakes stop functioning and park brake engages.

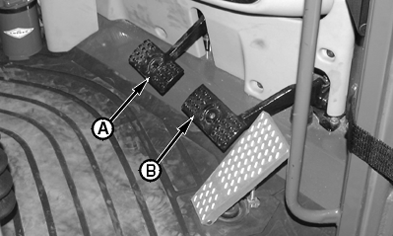

T129671E


A-Inching Pedal
B-Service Brake Pedal
