Park Brake

causym CAUTION: Prevent possible injury from unexpected machine movement. Always engage park brake before leaving operator's seat, or when the machine is stationary. DO NOT operate this machine if the park brake is not working properly.

Move transmission control and park brake lever (A) to PARK position "P" to engage park brake. Lever sleeve (B) must drop into slot of console.

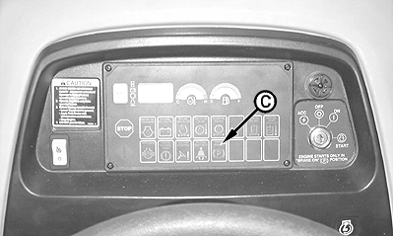

The park brake indicator (C) will light when the park brake is engaged and the key switch is in the ON position.


A-Transmission Control and Park Brake Lever
B-Lever Sleeve
C-Park Brake Indicator

T129688B
T129538E

CED,OUO1079,64 -19-29MAR00-1/2

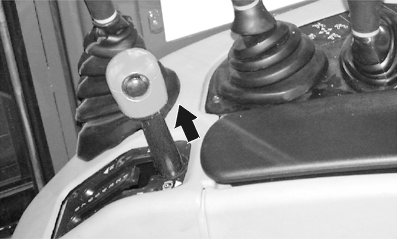

Lift the transmission control and park brake lever sleeve and move the lever to the NEUTRAL position to release the park brake.

NOTE: The spring-applied, hydraulically-released park brake will automatically engage whenever the key switch is turned to OFF, or when brake system pressure drops below 2068 kPa (20.68 bar) (300 psi). If applying the service brakes causes the park brake to engage, the hydraulic accumulator may need service. (See Check Brake Accumulator Action in Maintenance-Every 500 Hours chapter), or contact your authorized dealer.
