Differential Lock Button

Push differential lock button (A) to lock differentials.

When differentials are locked, differential lock indicator (B) is lit and more effort is needed to turn steering wheel. Use differential lock only when additional traction is needed.

Differential lock may be applied "on-the-go".

Push differential lock button again to unlock differentials.

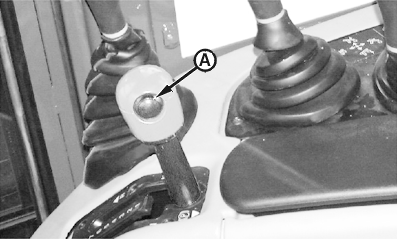

A-Differential Lock Button

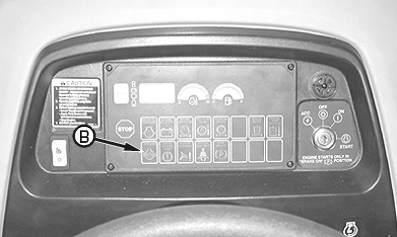

B-Differential Lock Indicator

CED,OUO1079,66 -19-29MAR00-1/1
