Winch Control Lever-If Equipped

causym CAUTION: Prevent injury from unexpected machine movement when winching. Use the park brake, service brake, and differential lock to hold the machine.

Operate the winch only from operator's station:

Winch POWER IN at an angle with park brake applied may cause machine to move. Apply service brake and differential lock to hold machine.

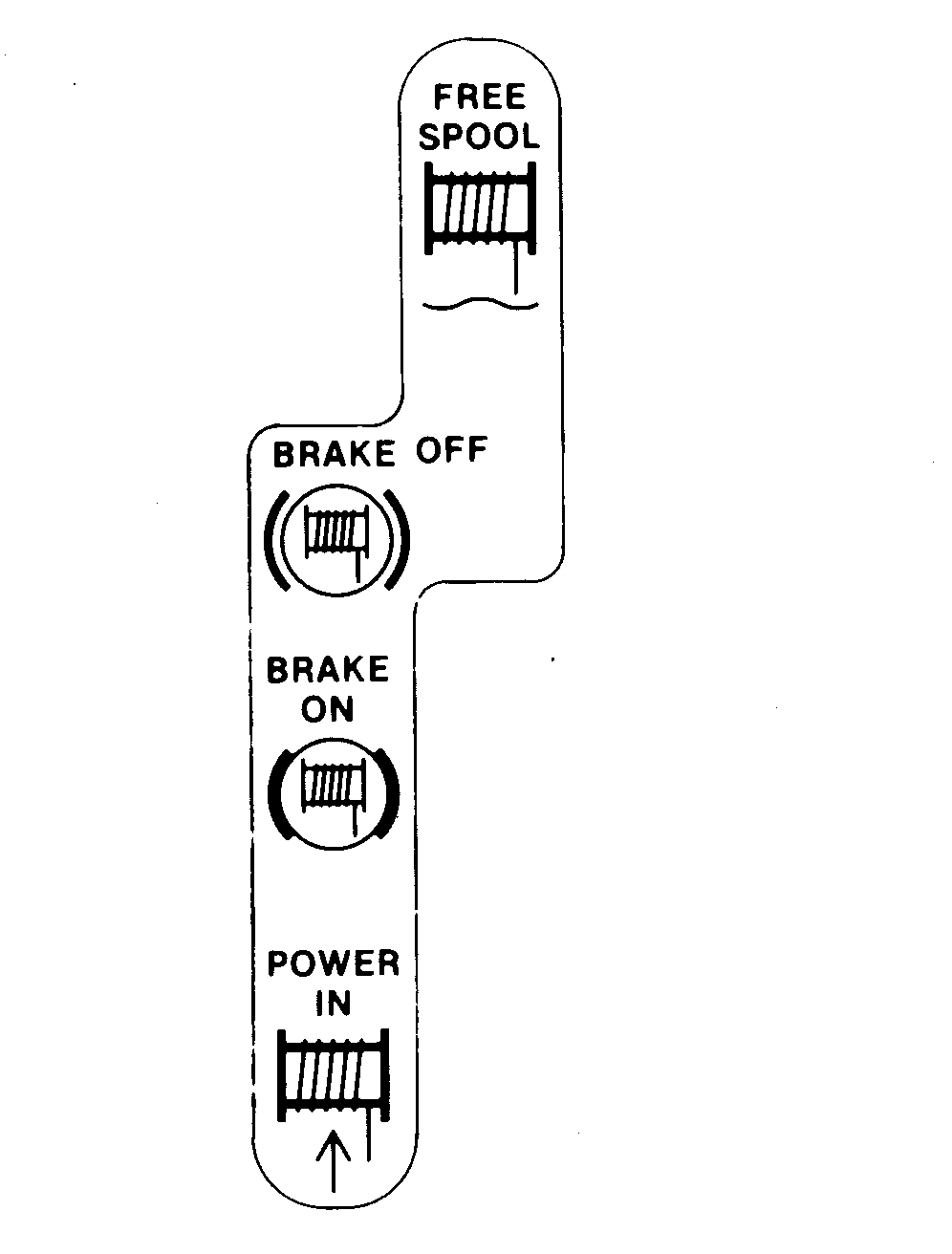

  • Move winch control lever (A) to POWER IN position to wind cable on drum.
  • Move winch control lever to FREE SPOOL position so cable can be pulled out freely.
  • Move winch control lever to the PARK position to hold cable.
  • Move winch control lever to the BRAKE OFF position so cable can be pulled out with tension. This will prevent cable from tangling when dropping loads.

    NOTE: If hydraulic oil is cold, the winch may not free spool easily. In extremely cold conditions, an extended warming up period may be necessary for the winch to operate properly.

  • Move the winch control lever to FREE SPOOL position during warm-up period to warm winch clutch until the winch free spools freely.
  • In extremely cold conditions, move the winch control lever to FREE SPOOL position whenever winch is not in use while machine is running. This will keep warm oil circulating to the winch from the transmission.

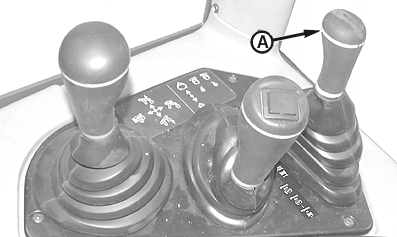

A-Winch Control Lever
