Arch and Boom Control Lever and Grapple Control Lever (Dual Function)-If Equipped

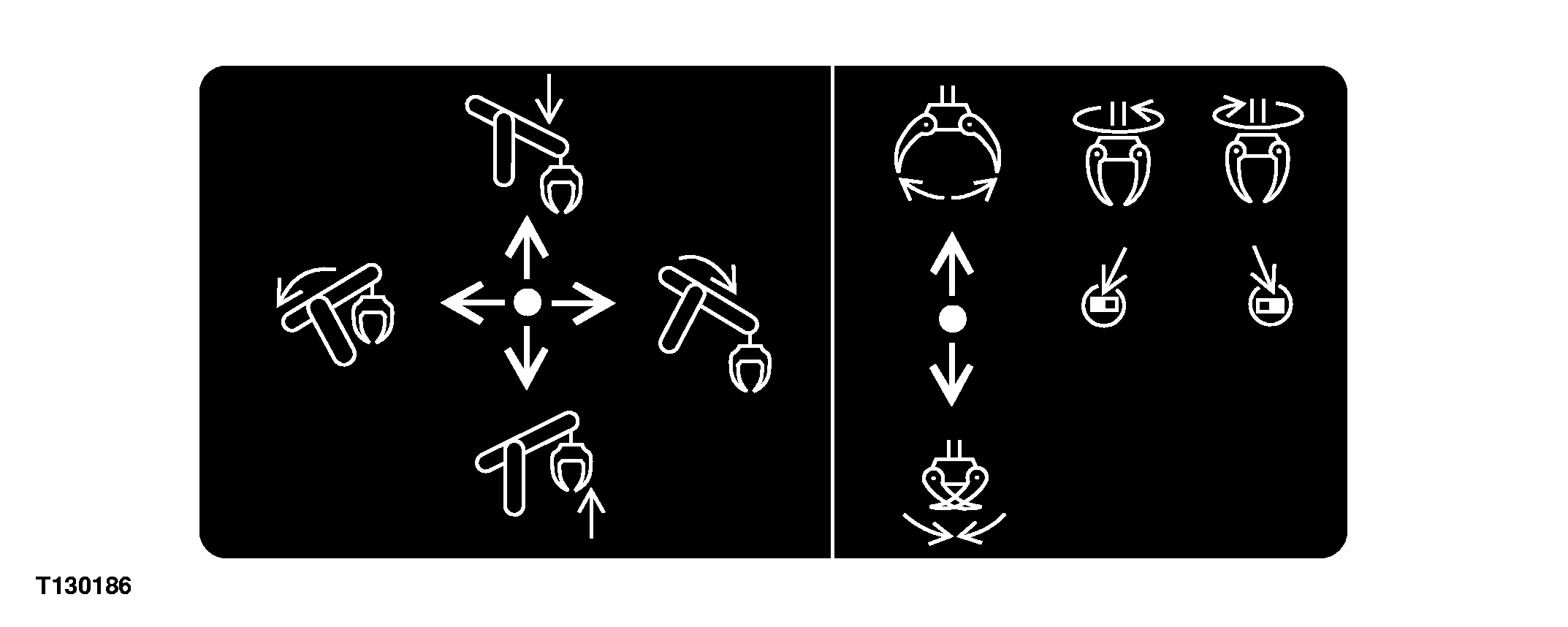

T130186

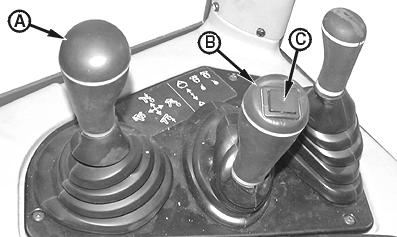

A-Arch and Boom Control Lever
B-Grapple Control Lever
C-Grapple Rotate Switch

causym CAUTION: DO NOT operate machine with boom or arch cylinders fully extended. In this position the circuit reliefs cannot protect the cylinders from overload.

Sitting in operator's seat:

1. Push arch and boom control lever (A) forward to retract arch.

2. Pull arch and boom control lever rearward to extend arch.

3. Push arch and boom control lever right to lower boom.

4. Pull arch and boom control lever left to raise boom.

5. Push grapple control lever (B) right to open grapple.

6. Pull grapple control lever left to close grapple.

When skidding logs, pull grapple control lever left to GRAPPLE CLOSE detent. This keeps a clamping force on the load at all times.

7. Push left half of grapple rotate switch (C) to rotate grapple counterclockwise.

T129540C

CED,OUO1079,69 -19-29MAR00-1/2

8. Push right half of grapple rotate switch to rotate grapple clockwise.

CED,OUO1079,69 -19-29MAR00-2/2
