Check Brake Accumulator Action

1. Run engine at slow idle.

2. Raise blade to upper stop.

3. Move transmission control and park brake lever (A) to NEUTRAL position "N".

causym CAUTION: If park brake indicator comes ON with one application of brake, accumulator has lost its gas charge. This may cause park brake to stop machine when service brakes and a hydraulic function are both used at same time.

4. Lower blade while pumping the service brake pedal as fast as possible until blade raises front of machine.

5. If park brake indicator comes on during test, replace accumulator. See your authorized dealer.

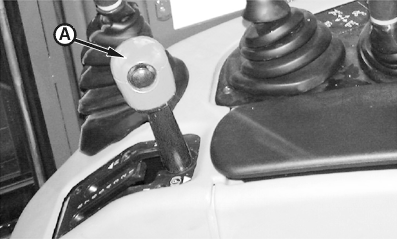

T129689B


A-Transmission Control and Park Brake Lever

CED,OUO1079,78 -19-29MAR00-1/1
